UCZ1V102MNQ1MS - Nichicon

Description: Aluminum Electrolytic Capacitors - SMD 35V 1000UF 20% AEC-Q200

Download UCZ1V102MNQ1MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UCZ1V102MNQ1MS - Nichicon - PCB symbol
click to zoom
PCB Footprints

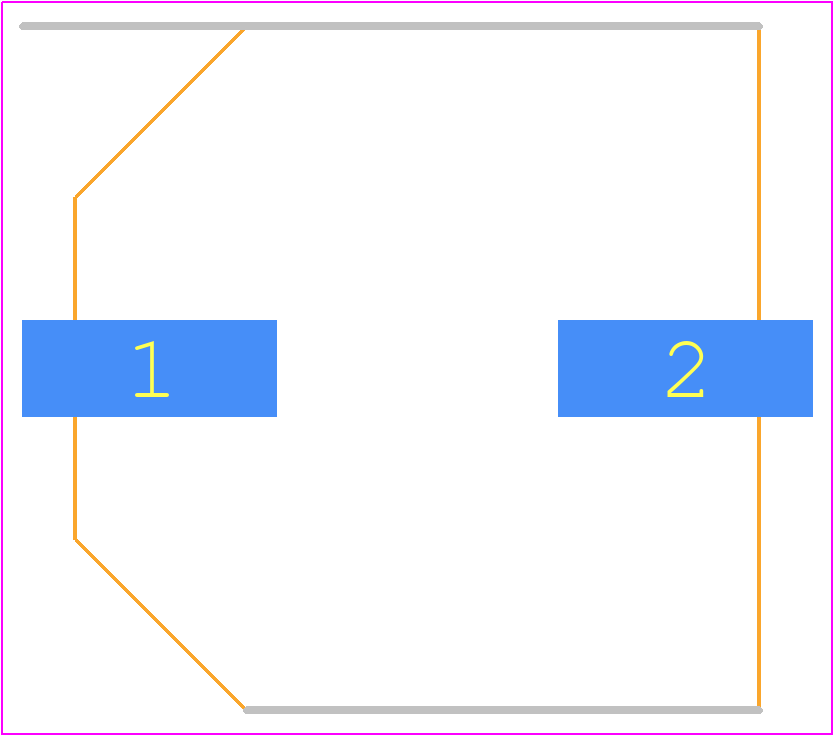

UCZ1V102MNQ1MS - Nichicon PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 16*16.5-1
click to zoom
3D Models
UCZ1V102MNQ1MS - Nichicon - 3D model - Capacitor Al Electrolytic - 16*16.5-1
click to zoom

UCZ1V102MNQ1MS Details

  • Manufacturer Part Number:

    UCZ1V102MNQ1MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    3

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    16 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    47 mΩ

  • Height:

    16.5 mm

  • Leakage Current:

    0.35 mA

  • Length:

    17.1 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 13 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    1200 mA

  • Size Code:

    6767

  • Surface Mount:

    YES

  • Tan Delta:

    0.16

  • Terminal Shape:

    FLAT

  • Width:

    17.1 mm

UCZ1V102MNQ1MS Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the UCZ1V102MNQ1MS is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, but it's recommended to consult with Nichicon Corporation for specific vibration requirements.
  • Store the capacitors in a dry, cool place, away from direct sunlight and moisture. Avoid stacking or piling the capacitors on top of each other, and handle them by the body, not the leads.
  • The ESR of the UCZ1V102MNQ1MS is typically around 0.05Ω at 100kHz, but this value may vary depending on the frequency and operating conditions.
  • The UCZ1V102MNQ1MS is rated for operation up to 105°C, but derating is required for temperatures above 85°C. Consult with Nichicon Corporation for specific temperature requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCZ1V102MNQ1MS Overview

Use the download button to access the UCZ1V102MNQ1MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCZ1V, or try a keyword search, such as Aluminum Electrolytic Capacitors
