UFW1H472MRD - Nichicon

Description: CAP ALUM 4700UF 20% 50V RADIAL

Download UFW1H472MRD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UFW1H472MRD - Nichicon - PCB symbol
click to zoom
PCB Footprints

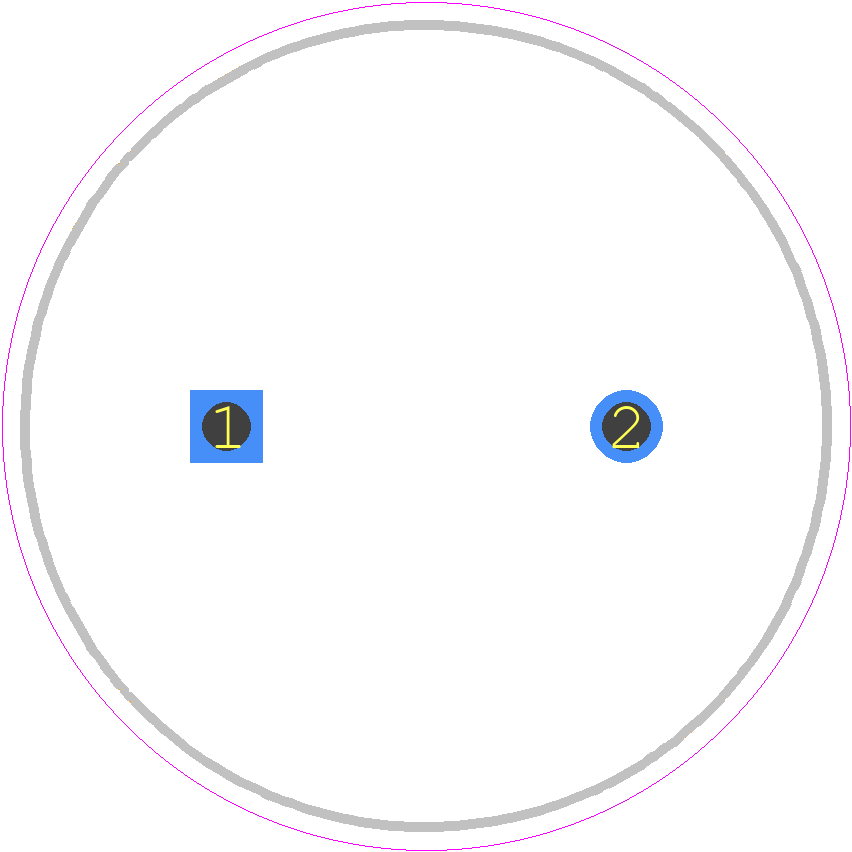

UFW1H472MRD - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 20*40
click to zoom
3D Models
UFW1H472MRD - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 20*40
click to zoom

UFW1H472MRD Details

  • Manufacturer Part Number:

    UFW1H472MRD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    20 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    7.05 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    TAPE

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    2900 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.12

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    WIRE

UFW1H472MRD Frequently Asked Questions (FAQs)

  • Nichicon recommends a PCB layout with a large copper area for the capacitor pads, and a via connection to the internal GND plane to reduce ESR. A minimum of 2mm clearance around the capacitor is also recommended.
  • While the datasheet specifies an operating temperature range of -40°C to 105°C, Nichicon recommends derating the capacitor's voltage and capacitance values for high-temperature applications above 85°C. Consult with Nichicon's application engineers for specific guidance.
  • UFW1H472MRD is designed for high-frequency applications, but its performance may degrade above 100 kHz. Nichicon recommends using impedance analyzer data to determine the capacitor's performance at specific frequencies. Additionally, consider using Nichicon's high-frequency capacitor series, such as the UFW-HF series, for applications above 100 kHz.
  • Yes, UFW1H472MRD is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. However, Nichicon recommends following the recommended soldering profile and temperature guidelines to ensure reliable assembly.
  • Nichicon recommends storing UFW1H472MRD in a dry, cool place with a relative humidity of 60% or less, and at a temperature range of 5°C to 30°C. Avoid storing the capacitors in direct sunlight or near heat sources.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UFW1H472MRD Overview

Use the download button to access the UFW1H472MRD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UFW1H, or try a keyword search, such as Aluminum Electrolytic Capacitors
