Nichicon recommends a PCB layout with a large copper area for the capacitor pads, and a short and wide connection to the ground plane to minimize ESR. A detailed layout guide can be found in Nichicon's application notes.
While the datasheet specifies an operating temperature range of -55°C to 125°C, Nichicon recommends derating the capacitor's voltage and capacitance values at high temperatures to ensure reliability. Consult Nichicon's application notes for specific guidance.
The UFW1J682MRD is designed for high-frequency applications, but its impedance and ESR may increase at frequencies above 100 kHz. Nichicon provides impedance vs. frequency curves in the datasheet, and recommends using simulation tools or consulting with their application engineers for specific design guidance.
Yes, the UFW1J682MRD is compatible with lead-free soldering processes, but Nichicon recommends following their recommended soldering profile to ensure reliable connections.
Nichicon estimates the UFW1J682MRD's lifespan to be around 10,000 hours at 125°C, but this can vary depending on the application, operating conditions, and environmental factors. Consult Nichicon's reliability data and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UFW1J682MRD Overview

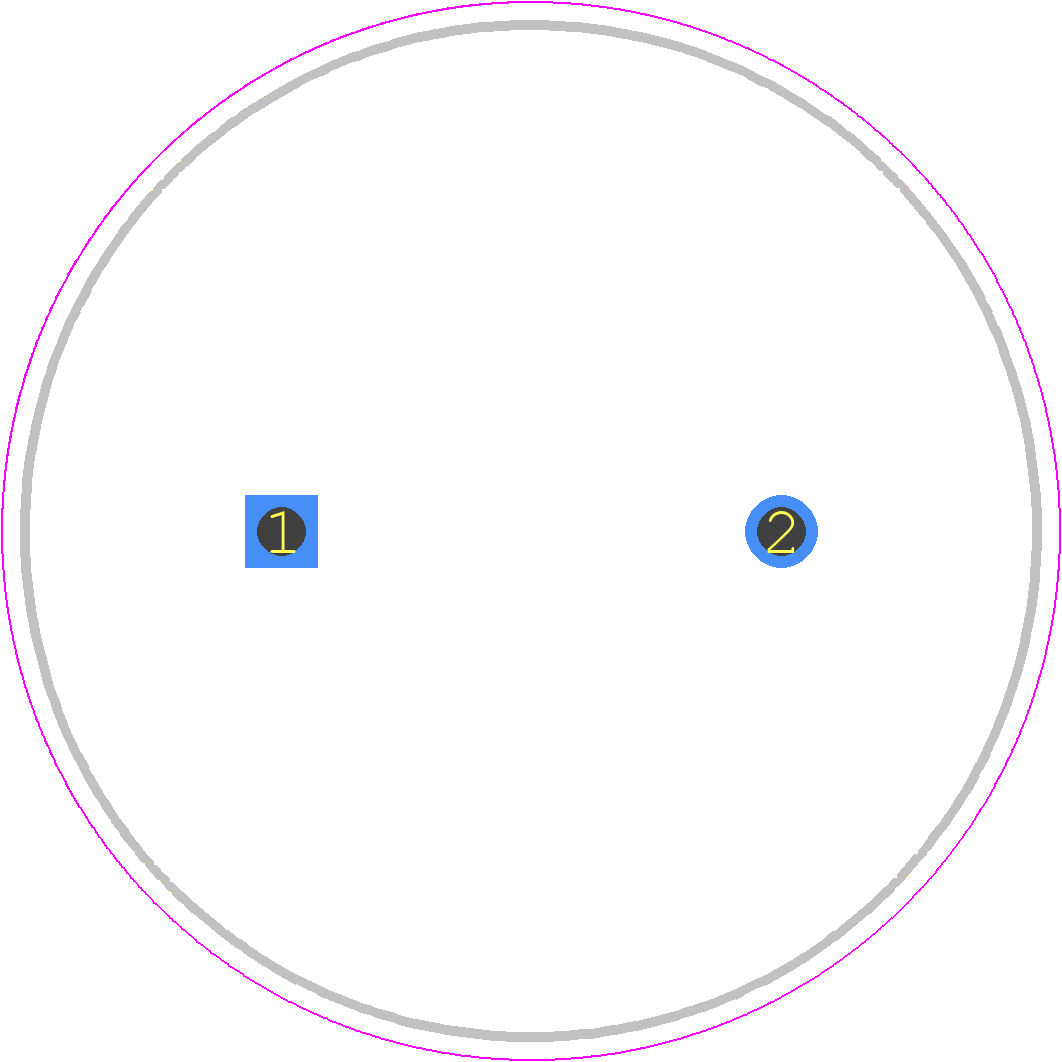

Use the download button to access the UFW1J682MRD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UFW1J,
or try a keyword search, such as Aluminum Electrolytic Capacitors
