UJA1169TKZ - NXP

Description: CAN Interface IC Mini high-speed CAN system basis chip

Download UJA1169TKZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

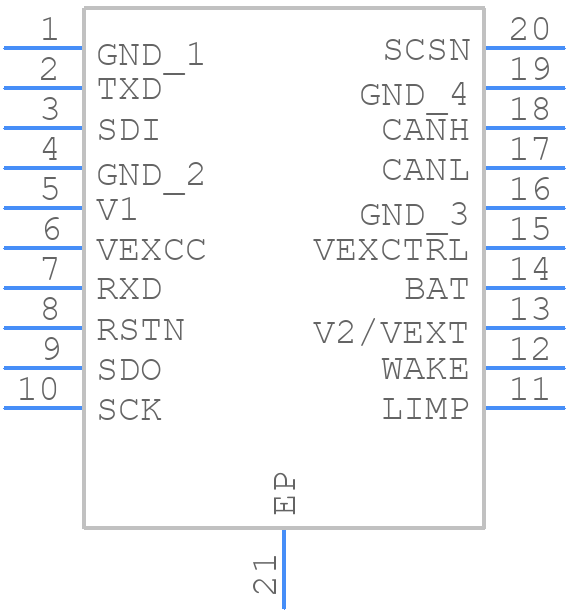

Symbol
UJA1169TKZ - NXP - PCB symbol
click to zoom
PCB Footprints
UJA1169TKZ - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - 20-HVSON (3.5x5.5)
click to zoom
3D Models
UJA1169TKZ - NXP - 3D model - Small Outline No-lead - 20-HVSON (3.5x5.5)
click to zoom

UJA1169TKZ Details

  • Manufacturer Part Number:

    UJA1169TKZ

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer Package Code:

    SOT1360-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    SYSTEM BASIS CHIP

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Time@Peak Reflow Temperature-Max (s):

    30

UJA1169TKZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the UJA1169TKZ involves keeping the high-current paths short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper cooling, make sure to provide a sufficient heat sink, use thermal interface material, and ensure good airflow around the device. The UJA1169TKZ has a thermal pad that must be connected to a heat sink or a thermal interface material to dissipate heat efficiently.
  • The maximum allowed voltage on the VS pin is 28V, but it's recommended to keep it below 24V to ensure reliable operation and to prevent damage to the device.
  • To configure the UJA1169TKZ for low-power mode, set the EN pin low and the STB pin high. This will put the device in a low-power state, reducing the current consumption to a minimum.
  • The recommended input capacitor value for the UJA1169TKZ is 10uF to 22uF, with a voltage rating of at least 25V. A higher capacitance value can be used, but it may affect the device's performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UJA1169TKZ Overview

Use the download button to access the UJA1169TKZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UJA11, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
