- Part Number UKW1E153MRD
- Manufacturer Nichicon
- Pin Count 2
- Part Category Capacitor Polarised
- Package Category Capacitor, Polarized Radial Diameter

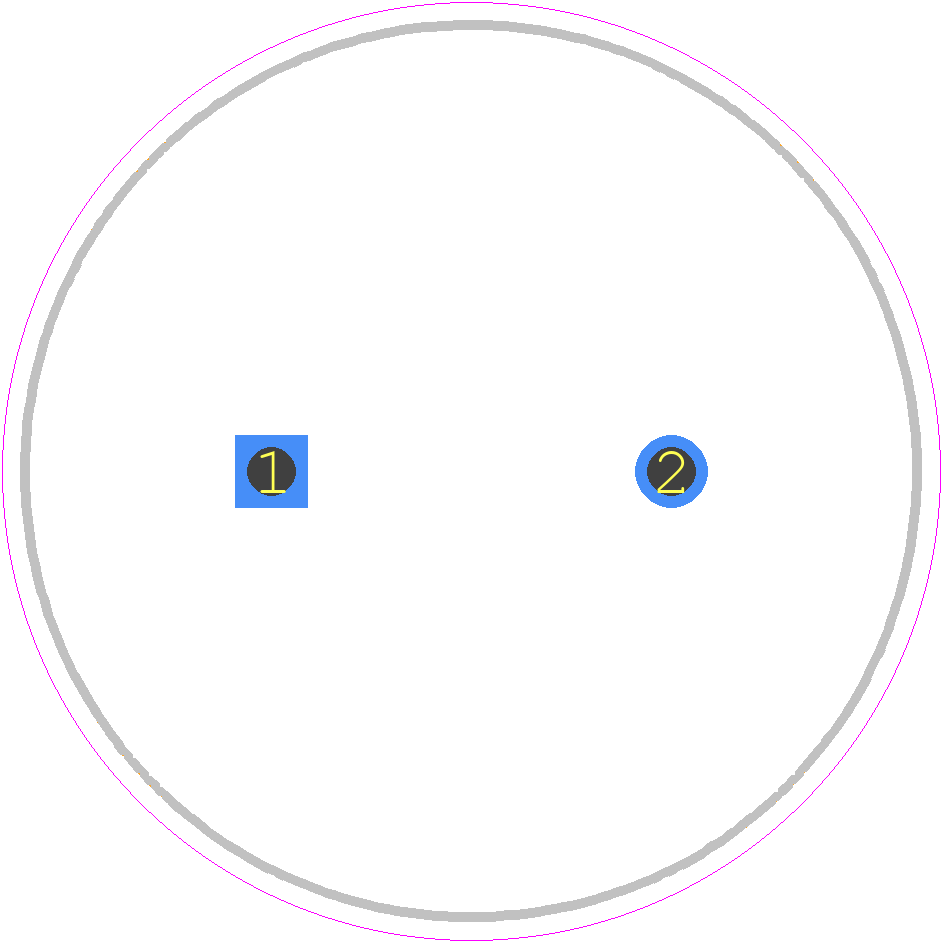

- Footprint Name Capacitor, Polarized Radial Diameter - 22*50
- Released Date May 14, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
UKW1E153MRD Details
-
Manufacturer Part Number:
UKW1E153MRD
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
RADIAL LEADED
-
Reach Compliance Code:
Not Compliant
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8532.22.00
-
Manufacturer:
Nichicon Corporation
-
YTEOL:
0
UKW1E153MRD Frequently Asked Questions (FAQs)
-
The recommended soldering temperature for UKW1E153MRD is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, UKW1E153MRD is designed for high-frequency applications, with a self-resonant frequency of around 10 MHz.
-
The derating curve for UKW1E153MRD is typically provided by Nichicon Corporation upon request. However, as a general guideline, the capacitor's capacitance and voltage rating should be derated by 10-20% for every 10°C increase above the rated temperature of 85°C.
-
Yes, UKW1E153MRD meets the requirements for automotive applications, including AEC-Q200 qualification. However, it's essential to verify the specific requirements of the application and ensure the capacitor meets those requirements.
-
The MSL of UKW1E153MRD is level 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before soldering.
Trust Checks
Community Provided
System Verified
Community Approved
UKW1E153MRD Overview
Use the download button to access the UKW1E153MRD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UKW1E,
or try a keyword search, such as Aluminum Electrolytic Capacitors
