The maximum operating temperature range for the ULN62003AS16-13 is -40°C to 125°C.
Yes, the ULN62003AS16-13 can be used as a relay driver due to its high current capability and low saturation voltage.
To protect the ULN62003AS16-13 from back-EMF when driving inductive loads, use a flyback diode or a TVS diode in parallel with the load.
The minimum input voltage required for the ULN62003AS16-13 to function properly is 2.7V, but it's recommended to use a minimum of 3V for reliable operation.
Yes, the ULN62003AS16-13 can be used to drive LEDs, but make sure to limit the current to the recommended maximum value to avoid overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ULN62003AS16-13 Overview

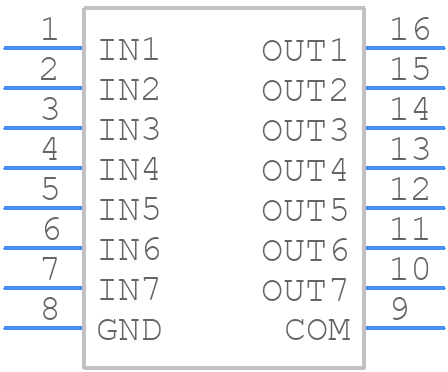

Use the download button to access the ULN62003AS16-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULN62,
or try a keyword search, such as Small Signal Bipolar Transistors
