UMA1E470MDD - Nichicon

Description: Cap Aluminum Lytic 47uF 25V 20% (8 X 5mm) Radial 2.5mm 70mA 2000h 85°C Bulk

Download UMA1E470MDD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UMA1E470MDD - Nichicon - PCB symbol
click to zoom
PCB Footprints

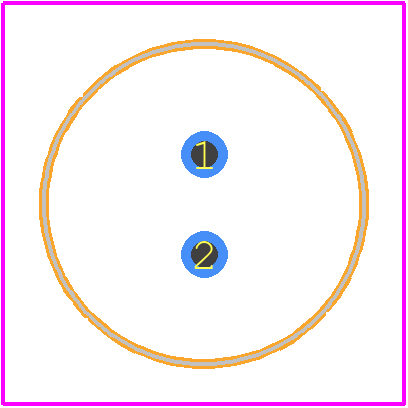

UMA1E470MDD - Nichicon PCB footprint - Other - Other - UMA1E470MDD-1
click to zoom
3D Models
UMA1E470MDD - Nichicon - 3D model - Other - UMA1E470MDD-1
click to zoom

UMA1E470MDD Details

  • Manufacturer Part Number:

    UMA1E470MDD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0

  • Capacitance:

    47 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.01175 mA

  • Length:

    5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    70 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.14

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    2.5 mm

  • Terminal Shape:

    WIRE

UMA1E470MDD Frequently Asked Questions (FAQs)

  • Nichicon recommends a PCB layout with a large copper area for the capacitor pads, and a via connection to the internal GND plane to reduce ESL. A 4-layer PCB with a dedicated GND plane is also recommended.
  • The UMA1E470MDD is designed to handle high-frequency ripple current, but it's essential to consider the frequency and amplitude of the ripple current when selecting the capacitor. Nichicon provides a ripple current derating curve in the datasheet to help with this selection.
  • The maximum operating temperature for UMA1E470MDD is 105°C, but it's essential to consider the derating curve for capacitance and ESR at high temperatures. Nichicon recommends a maximum operating temperature of 85°C for optimal performance and reliability.
  • Yes, the UMA1E470MDD is designed to withstand high-vibration environments. Nichicon recommends following the IEC 60068-2-6 standard for vibration testing, and the capacitor is suitable for use in applications with vibration levels up to 10G.
  • The UMA1E470MDD is designed to withstand surge voltages up to 1.5 times the rated voltage for a short duration (less than 1 second). However, it's essential to consider the surge voltage and duration when selecting the capacitor to ensure reliable operation.
