UMD5NTR - ROHM Semiconductor

Description: NPN+PNP, SOT-363, Dual Digital Transistor (Bias Resistor Built-in Transistor)

Download UMD5NTR Model

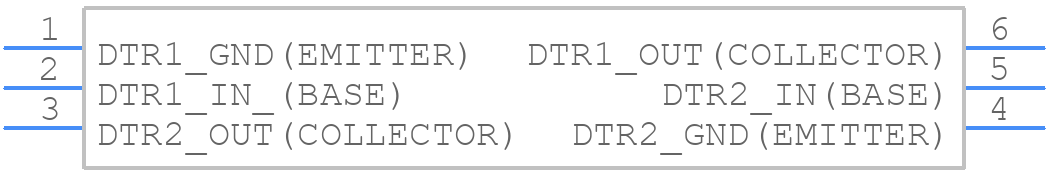

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UMD5NTR - ROHM Semiconductor PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-363 SC-88 (UMT6)
click to zoom
3D Models
UMD5NTR - ROHM Semiconductor  - 3D model - SOT23 (6-Pin) - SOT-363 SC-88 (UMT6)
click to zoom

UMD5NTR Details

  • Manufacturer Part Number:

    UMD5NTR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-88

  • Package Description:

    ROHS COMPLIANT, UMT6, SC-88, 6 PIN

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    BUILT-IN BIAS RESISTOR RATIO IS 1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    68

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.15 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz
