UMH10NFHATN - ROHM Semiconductor

Description: NPN+NPN, SOT-363, Dual Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Download UMH10NFHATN Model

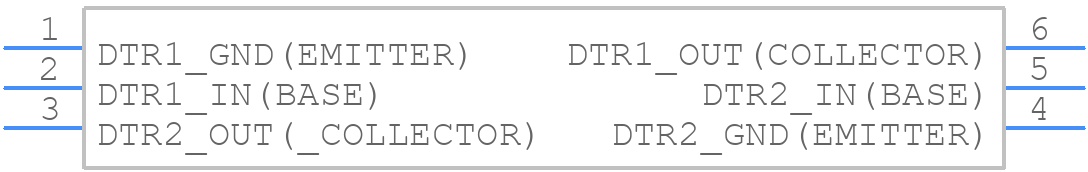

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UMH10NFHATN - ROHM Semiconductor PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-363_
click to zoom
3D Models
UMH10NFHATN - ROHM Semiconductor  - 3D model - SOT23 (6-Pin) - SOT-363_
click to zoom

UMH10NFHATN Details

  • Manufacturer Part Number:

    UMH10NFHATN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-88, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    BUILT IN BIAS RESISTANCE RATIO IS 21

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-G6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

UMH10NFHATN Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad size of at least 2mm x 2mm, with multiple vias connecting to a solid ground plane to ensure efficient heat dissipation. A thermal relief pattern around the pad is also recommended to prevent thermal stress.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for voltage and current. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature.
  • The maximum allowed voltage for the gate-source (Vgs) and gate-drain (Vgd) pins is ±20V, with a maximum transient voltage of ±30V for a duration of less than 100ns.
  • To prevent latch-up, ensure that the device is operated within the recommended voltage and current ranges. Avoid applying high voltage or current spikes to the device, and use a suitable gate resistor to limit the gate current.
  • The recommended gate resistor value is typically in the range of 1kΩ to 10kΩ, depending on the specific application and switching frequency. A higher gate resistor value can help reduce EMI and ringing, but may increase the turn-on time.
