UMH9NFHATN - ROHM Semiconductor

Description: NPN+NPN, SOT-363, Dual Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Download UMH9NFHATN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

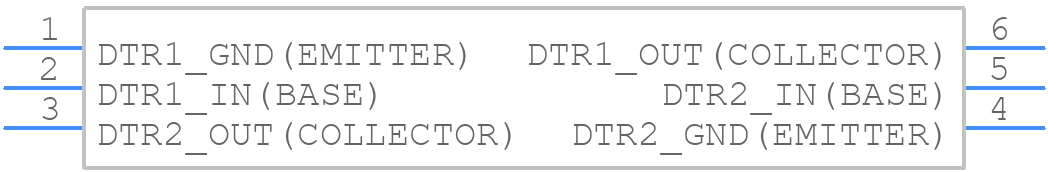

UMH9NFHATN - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
UMH9NFHATN - ROHM Semiconductor PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - UMT6
click to zoom
3D Models
UMH9NFHATN - ROHM Semiconductor - 3D model - SOT23 (6-Pin) - UMT6
click to zoom

UMH9NFHATN Details

  • Manufacturer Part Number:

    UMH9NFHATN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-88, 6 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    BUILT IN BIAS RESISTANCE RATIO 4.7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    68

  • JESD-30 Code:

    R-PDSO-G6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

UMH9NFHATN Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure the device is operated within the recommended junction temperature (Tj) range of -40°C to 150°C. Implement proper thermal management, and consider using a heat sink or thermal interface material if necessary.
  • Handle the device by the body, avoiding touching the pins. Store the device in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and follow ESD precautions during handling.
  • Yes, the UMH9NFHATN is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions and design guidelines.
  • Check the input voltage, output voltage, and current consumption. Verify the device is operated within the recommended voltage range and that the input capacitor is properly sized. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UMH9NFHATN Overview

Use the download button to access the UMH9NFHATN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UMH9N, or try a keyword search, such as Small Signal Bipolar Transistors
