UPC1185H2 - NEC

UPC1185H2 Details

• Manufacturer Part Number:

  UPC1185H2

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

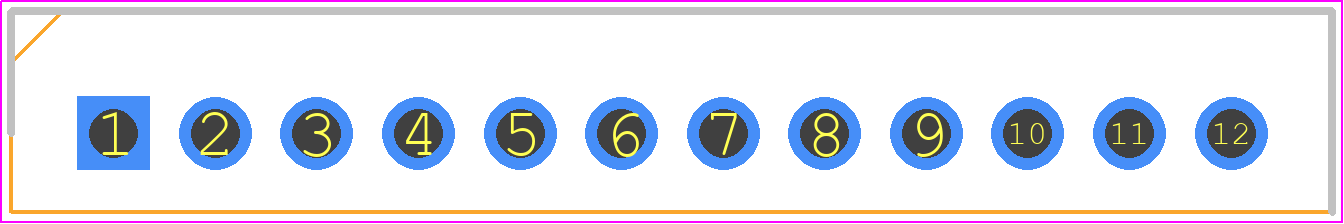

• Package Description:

  SIP-12

• Reach Compliance Code:

  Compliant

• Manufacturer:

  NEC Electronics America Inc

• YTEOL:

  0

• Consumer IC Type:

  AUDIO AMPLIFIER

• Gain:

  54 dB

• Harmonic Distortion:

  10%

• JESD-30 Code:

  R-PSFM-T12

• JESD-609 Code:

  e0

• Number of Channels:

  2

• Number of Terminals:

  12

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -30 °C

• Output Power-Nom:

  8.5 W

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Supply Current-Max:

  180 mA

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  9.5 V

• Surface Mount:

  NO

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE
