UPD4721GS-GJG-E2 - Renesas Electronics

Description: IC LINE DRVR/RECEIVER

Download UPD4721GS-GJG-E2 Model

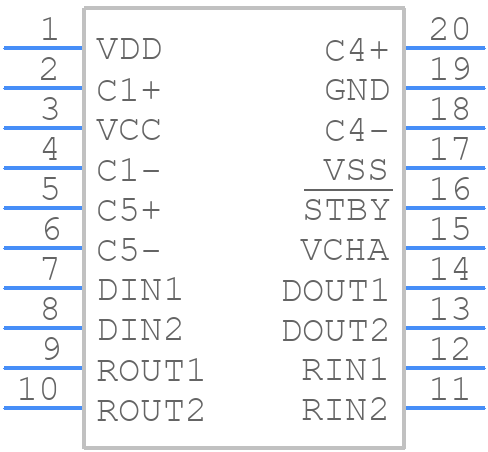

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UPD4721GS-GJG-E2 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 20 PIN PLASTIC SHRINK SOP (300 mil)
click to zoom
3D Models
UPD4721GS-GJG-E2 - Renesas Electronics  - 3D model - Small Outline Packages - 20 PIN PLASTIC SHRINK SOP (300 mil)
click to zoom

UPD4721GS-GJG-E2 Details

  • Manufacturer Part Number:

    UPD4721GS-GJG-E2

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    LG_MAX

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; TIA-232-E

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    7 mm

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.004 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    24 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

UPD4721GS-GJG-E2 Frequently Asked Questions (FAQs)

  • The recommended oscillator frequency is between 4 MHz and 16 MHz, with a typical value of 8 MHz.
  • To configure the UPD4721GS-GJG-E2 for low-power operation, set the clock mode to 'Low Power' (LP) mode, disable unnecessary peripherals, and use the 'Stop' or 'Sleep' mode when the MCU is not in use.
  • The maximum current consumption of the UPD4721GS-GJG-E2 is approximately 15 mA at 5 V and 8 MHz operation.
  • The UPD4721GS-GJG-E2 has a built-in watchdog timer (WDT) that can be enabled and configured using the WDT control register. The WDT can be set to timeout after a specified period of inactivity.
  • The maximum operating temperature range of the UPD4721GS-GJG-E2 is -40°C to +85°C.
