Nichicon recommends a soldering temperature profile with a peak temperature of 260°C for 10 seconds or less, and a total soldering time of 3 minutes or less.
Yes, the UPT2D471MRD is designed to withstand vibrations up to 10Hz to 200Hz, 1.5mm amplitude, and 3 directions (X, Y, Z) according to IEC 60068-2-6. However, it's recommended to consult with Nichicon or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The UPT2D471MRD is designed to handle surge currents up to 100A, 1000μs, and 100kHz according to IEC 61000-4-5. However, it's recommended to consult with Nichicon or a qualified engineer to ensure the capacitor meets the specific surge current requirements of your application.
Yes, the UPT2D471MRD capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements of EU directives 2011/65/EU and (EC) No 1907/2006, respectively.
Nichicon recommends storing the UPT2D471MRD capacitor in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%. Avoid storing the capacitor in direct sunlight, high temperatures, or high humidity environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UPT2D471MRD Overview

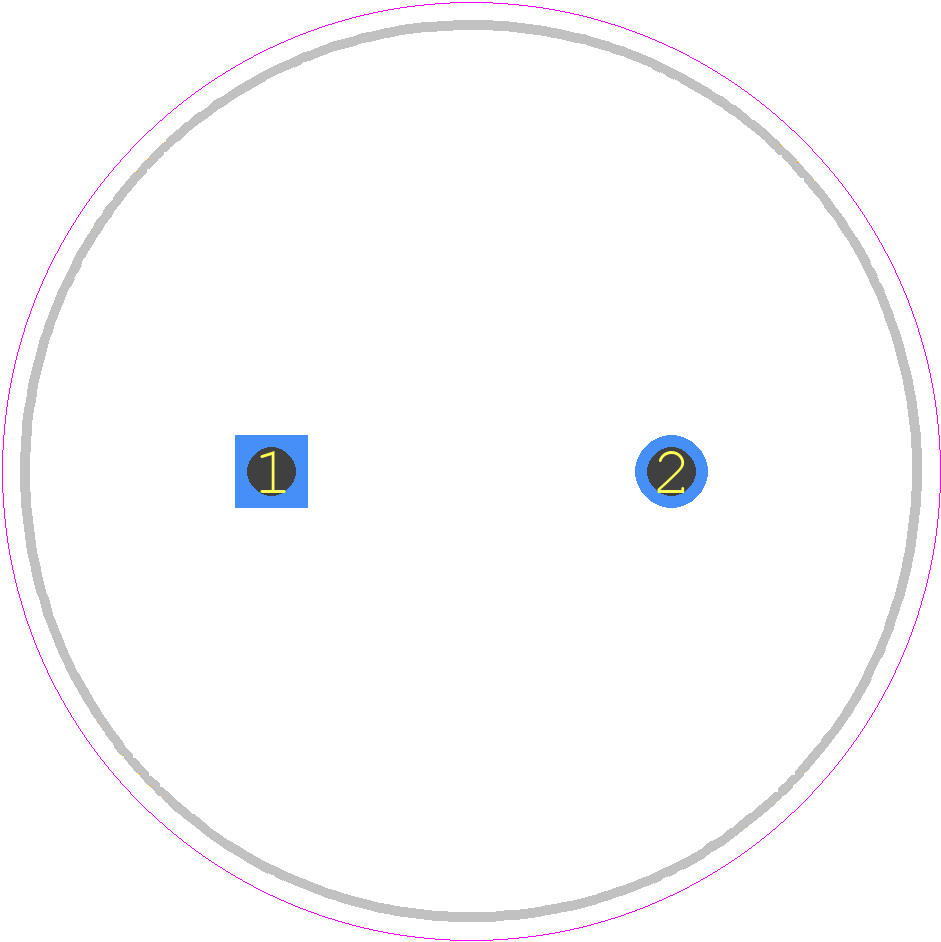

Use the download button to access the UPT2D471MRD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPT2D,
or try a keyword search, such as Aluminum Electrolytic Capacitors
