UPW2E221MRD - Nichicon

Description: Nichicon 220µF 250V dc Aluminium Electrolytic Capacitor, Through Hole 20 (Dia.) x 40mm +105°C 20mm 10mm

Download UPW2E221MRD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UPW2E221MRD - Nichicon - PCB symbol
click to zoom
PCB Footprints

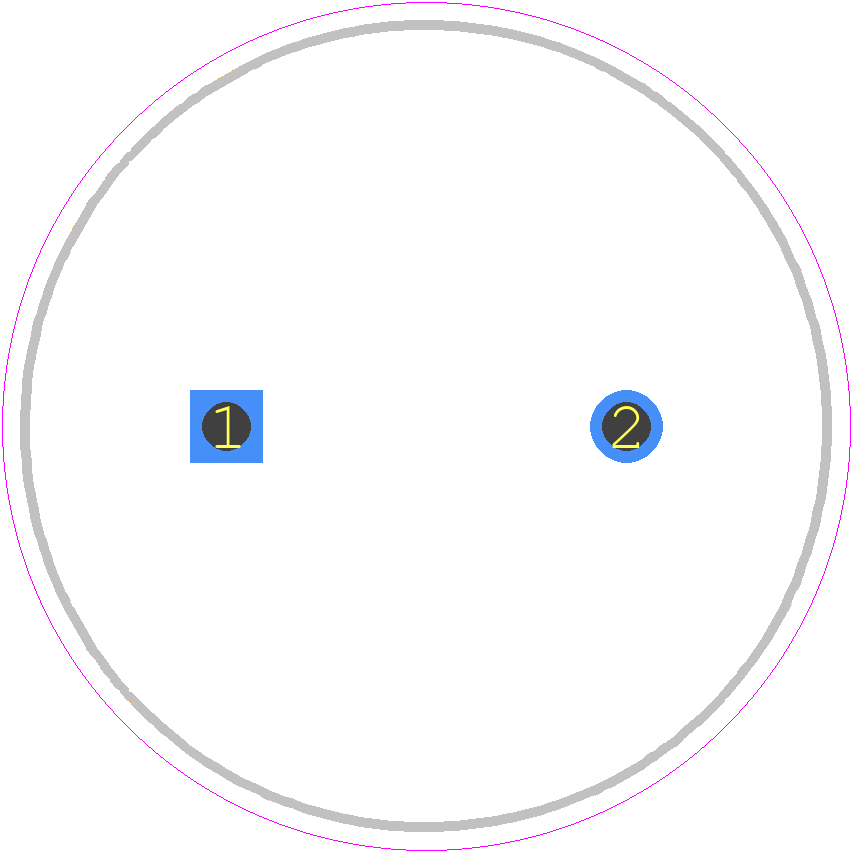

UPW2E221MRD - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 20*40
click to zoom
3D Models
UPW2E221MRD - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 20*40
click to zoom

UPW2E221MRD Details

  • Manufacturer Part Number:

    UPW2E221MRD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0

  • Additional Feature:

    NON SOLVENT-PROOF

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    20 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.3 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    TAPE

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    12 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    WIRE

UPW2E221MRD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the UPW2E221MRD capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The derating curve for the UPW2E221MRD capacitor can be found in the Nichicon Corporation's application notes or by contacting their technical support. Generally, the capacitor's voltage rating should be derated by 1.25% per degree Celsius above 85°C (185°F).
  • Yes, the UPW2E221MRD capacitor is suitable for high-frequency applications up to 100 kHz. However, the capacitor's impedance and ESR (Equivalent Series Resistance) should be considered when designing high-frequency circuits.
  • The shelf life of the UPW2E221MRD capacitor is 2 years from the date of manufacture when stored in a dry, cool place. It is recommended to follow the storage and handling guidelines provided by Nichicon Corporation to ensure the capacitor's performance and reliability.
