UPW2E471MRD - Nichicon

Description: Nichicon 470µF 250V dc Aluminium Electrolytic Capacitor, Through Hole 25 (Dia.) x 50mm +105°C 25mm 12.5mm

Download UPW2E471MRD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UPW2E471MRD - Nichicon - PCB symbol
click to zoom
PCB Footprints

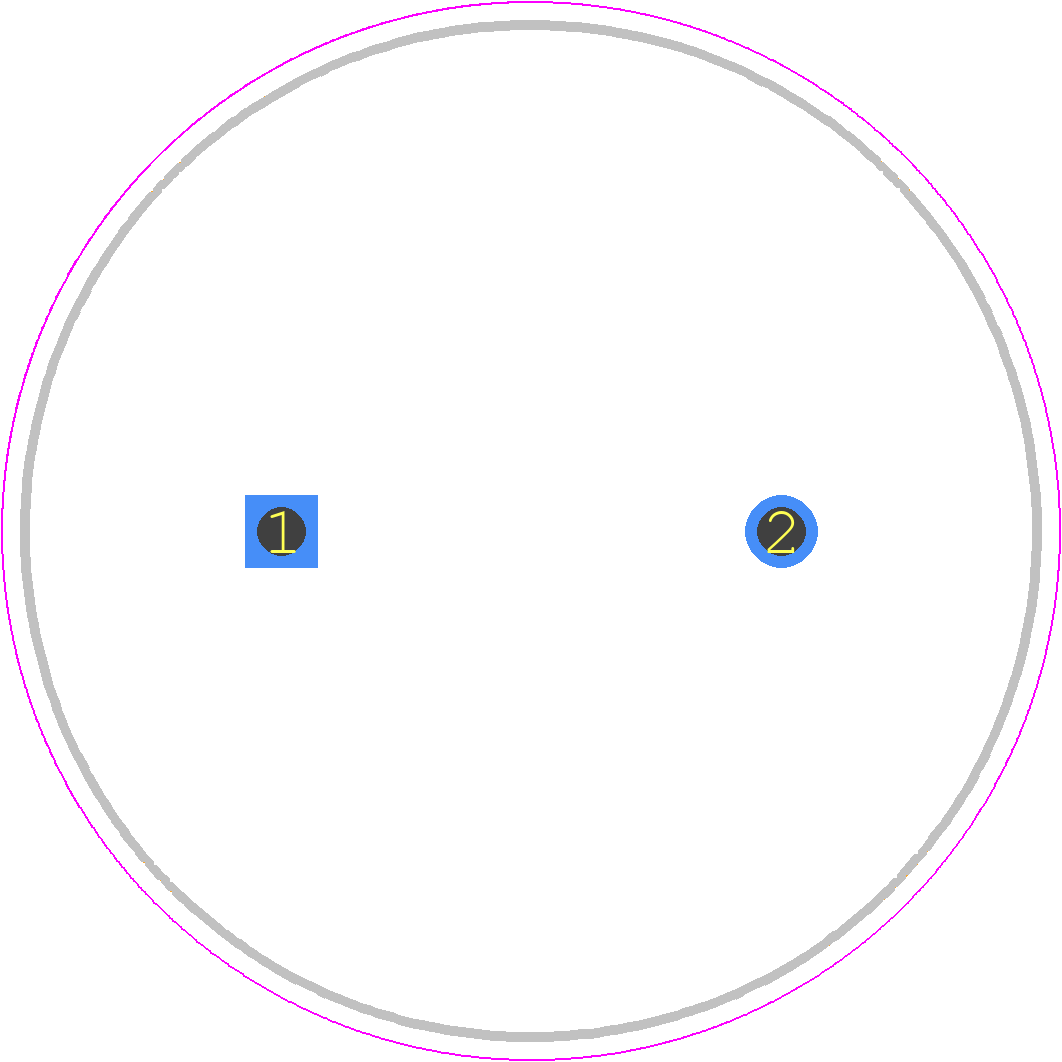

UPW2E471MRD - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25X50
click to zoom
3D Models
UPW2E471MRD - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25X50
click to zoom

UPW2E471MRD Details

  • Manufacturer Part Number:

    UPW2E471MRD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0

  • Additional Feature:

    NON SOLVENT-PROOF

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    4.8 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    TAPE

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    12 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    12.5 mm

  • Terminal Shape:

    WIRE

UPW2E471MRD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the UPW2E471MRD capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The derating curve for the UPW2E471MRD capacitor can be found in the Nichicon Corporation's application notes or by contacting their technical support. Generally, the capacitor's voltage rating decreases as the operating temperature increases.
  • Yes, the UPW2E471MRD capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high resonance frequency. However, the capacitor's performance may degrade at very high frequencies (e.g., above 1 MHz).
  • The shelf life of the UPW2E471MRD capacitor is typically 2 years from the date of manufacture when stored in a dry, cool place. However, it's recommended to check the capacitor's performance and appearance before using it in a production environment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UPW2E471MRD Overview

Use the download button to access the UPW2E471MRD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPW2E, or try a keyword search, such as Aluminum Electrolytic Capacitors
