URZ1V332MRD - Nichicon

Description: Aluminum Electrolytic Capacitors - Leaded 35volts 3300uF 20x25 20% 10LS

Download URZ1V332MRD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
URZ1V332MRD - Nichicon - PCB symbol
click to zoom
PCB Footprints

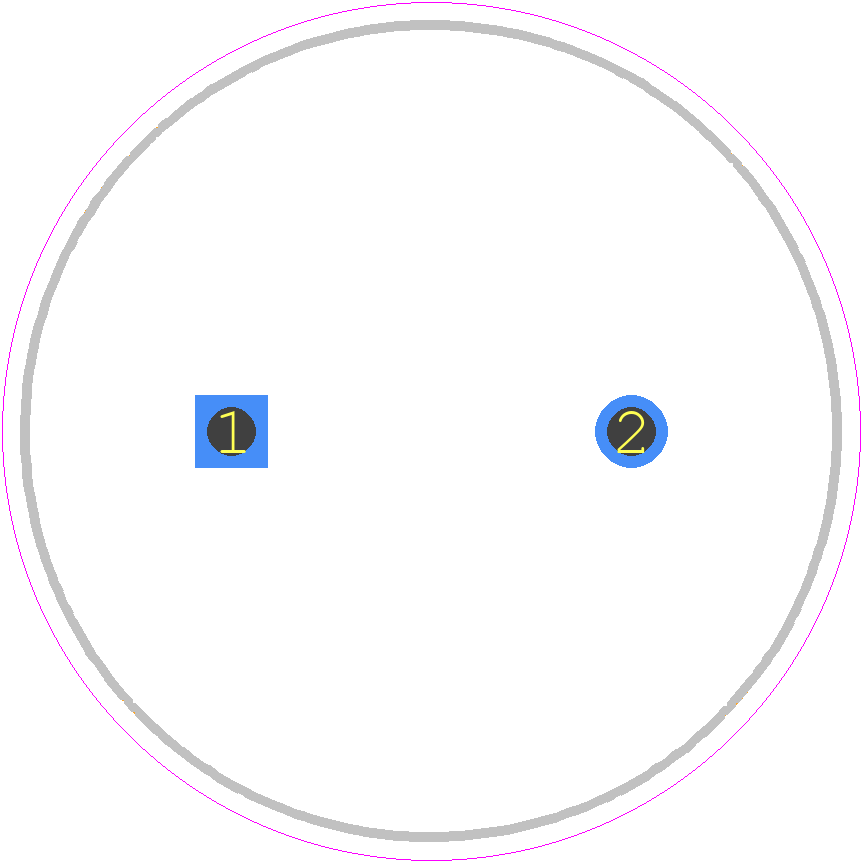

URZ1V332MRD - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - URZ1V332MRD
click to zoom
3D Models
URZ1V332MRD - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - URZ1V332MRD
click to zoom

URZ1V332MRD Details

  • Manufacturer Part Number:

    URZ1V332MRD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0

  • Capacitance:

    3300 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    20 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    3.465 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    TAPE

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    1430 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    WIRE

URZ1V332MRD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, with a peak temperature of 240°C (464°F) for 10 seconds or less.
  • Yes, the URZ1V332MRD capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the URZ1V332MRD capacitor is typically around 0.15 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • Yes, the URZ1V332MRD capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 1.5 mm amplitude, and 3 hours per axis.
  • The shelf life of the URZ1V332MRD capacitor is typically 2 years from the date of manufacture, but this can vary depending on storage conditions and handling.
