US6M11TR - ROHM Semiconductor

Description: 1.5V Drive Nch+Pch MOSFET: Complex type MOSFETs(P+N) are made as low ON-resistance devices by the micro-processing technologies useful for wide range of applications.Broad lineup covering compact types, high-power types and complex types to meet various needs in the market.

Download US6M11TR Model

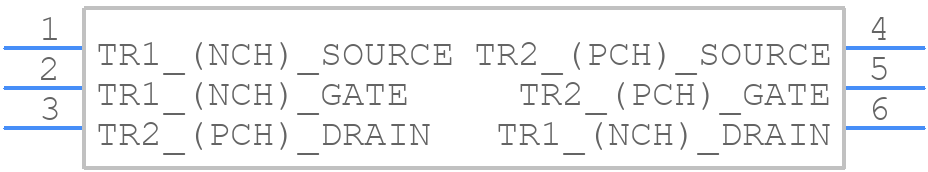

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
US6M11TR - ROHM Semiconductor PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - TUMT6
click to zoom
3D Models
US6M11TR - ROHM Semiconductor  - 3D model - SO Transistor Flat Lead - TUMT6
click to zoom

US6M11TR Details

  • Manufacturer Part Number:

    US6M11TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    TUMT6, 6 PIN

  • Pin Count:

    6

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    1.5 A

  • Drain-source On Resistance-Max:

    0.24 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    1 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

US6M11TR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the US6M11TR is -40°C to 125°C.
  • To ensure reliability, it's essential to follow the recommended derating guidelines, provide adequate heat sinking, and ensure proper thermal management in high-temperature applications.
  • The maximum allowable power dissipation for the US6M11TR is 1.5W. Exceeding this limit may lead to device failure or reduced lifespan.
  • Yes, the US6M11TR is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to consider the device's switching characteristics, such as rise and fall times, to ensure reliable operation.
  • To protect the US6M11TR from ESD, follow proper handling and storage procedures, use ESD-safe materials, and consider implementing ESD protection circuits in your design.
