USBN9604-28M/NOPB - Texas Instruments

Description: Texas Instruments USBN9604-28M/NOPB, USB Controller, USB 1.0, USB 1.1, 5 V, 28-Pin SOIC W

Download USBN9604-28M/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

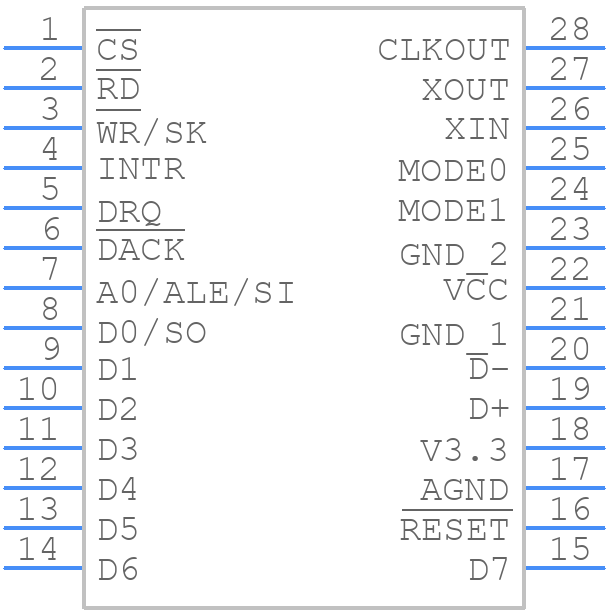

USBN9604-28M/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
USBN9604-28M/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - M28B
click to zoom
3D Models
USBN9604-28M/NOPB - Texas Instruments - 3D model - Small Outline Packages - M28B
click to zoom

USBN9604-28M/NOPB Details

  • Manufacturer Part Number:

    USBN9604-28M/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SO-28

  • Pin Count:

    28

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Address Bus Width:

    8

  • Bus Compatibility:

    USB

  • Clock Frequency-Max:

    24 MHz

  • External Data Bus Width:

    8

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

USBN9604-28M/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or ferrite bead to reduce EMI.
  • Use a thermal pad or thermal interface material to improve heat dissipation. Ensure good airflow and avoid blocking airflow around the device. Follow the recommended operating conditions and derating guidelines.
  • Operating at a lower voltage may reduce performance and increase power consumption. Operating at a higher voltage may reduce reliability and increase the risk of damage. Always follow the recommended voltage range (3.3V ± 10%) for optimal performance and reliability.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the USB data lines and power supply lines. Follow proper handling and storage procedures to prevent ESD damage.
  • Use a high-speed capable PCB material, ensure signal integrity by using controlled impedance traces, and follow the recommended layout guidelines. Use a common mode filter or ferrite bead to reduce EMI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

USBN9604-28M/NOPB Overview

Use the download button to access the USBN9604-28M/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like USBN9, or try a keyword search, such as Bus Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
