Nichicon recommends a voltage derating of 80% or less for the UUX2D4R7MNL1GS capacitor to ensure reliable operation and prevent premature failure.
The ESR of the UUX2D4R7MNL1GS capacitor is relatively low, which means it can handle high-frequency switching and reduce energy losses. However, high ESR can lead to increased heat generation and reduced lifespan.
The UUX2D4R7MNL1GS capacitor has a maximum operating temperature of 105°C, making it suitable for most industrial and automotive applications. However, it's essential to consider the temperature derating curve to ensure reliable operation.
To prevent damage and ensure reliable operation, Nichicon recommends following proper mounting and handling procedures, such as avoiding excessive bending, twisting, or vibration, and using a soldering iron with a temperature below 350°C.
The UUX2D4R7MNL1GS capacitor has a high ripple current rating, making it suitable for applications with high-frequency switching and high current demands. However, exceeding the ripple current rating can lead to increased heat generation and reduced lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UUX2D4R7MNL1GS Overview

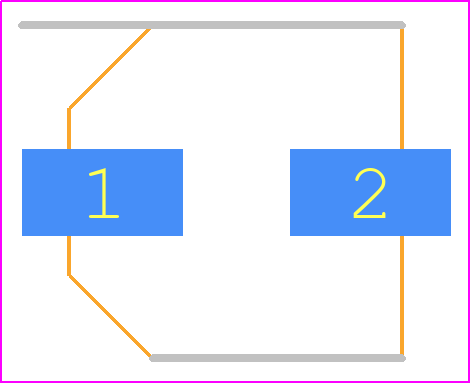

Use the download button to access the UUX2D4R7MNL1GS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UUX2D,
or try a keyword search, such as Aluminum Electrolytic Capacitors
