UVK1H472MRD - Nichicon

Description: Aluminium Electrolytic Capacitors - Radial Leaded 50volts 4700uF 20x40 20% 10LS

Download UVK1H472MRD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UVK1H472MRD - Nichicon - PCB symbol
click to zoom
PCB Footprints

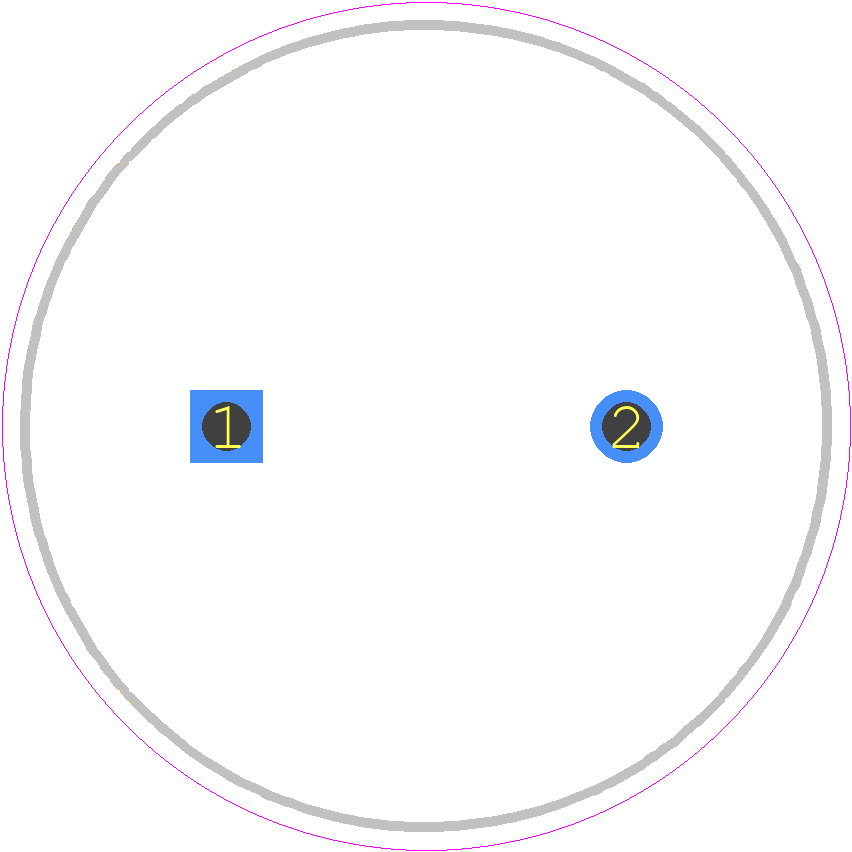

UVK1H472MRD - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 20*40
click to zoom
3D Models
UVK1H472MRD - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 20*40
click to zoom

UVK1H472MRD Details

  • Manufacturer Part Number:

    UVK1H472MRD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    20 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    7.05 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    2900 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    WIRE

UVK1H472MRD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the UVK1H472MRD is designed to withstand high-vibration environments and meets the vibration test requirements of IEC 60068-2-6.
  • Yes, the UVK1H472MRD is designed to operate in humid environments and meets the humidity test requirements of IEC 60068-2-78.
  • The ESR of UVK1H472MRD is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and temperature of operation.
  • Yes, the UVK1H472MRD is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in EU and other regions with similar regulations.
