UVY1H472MRD - Nichicon

Description: Nichicon 4700µF ±20% 50 V 5101-4 Through Hole Radial Aluminium Electrolytic Capacitor

Download UVY1H472MRD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UVY1H472MRD - Nichicon - PCB symbol
click to zoom
PCB Footprints

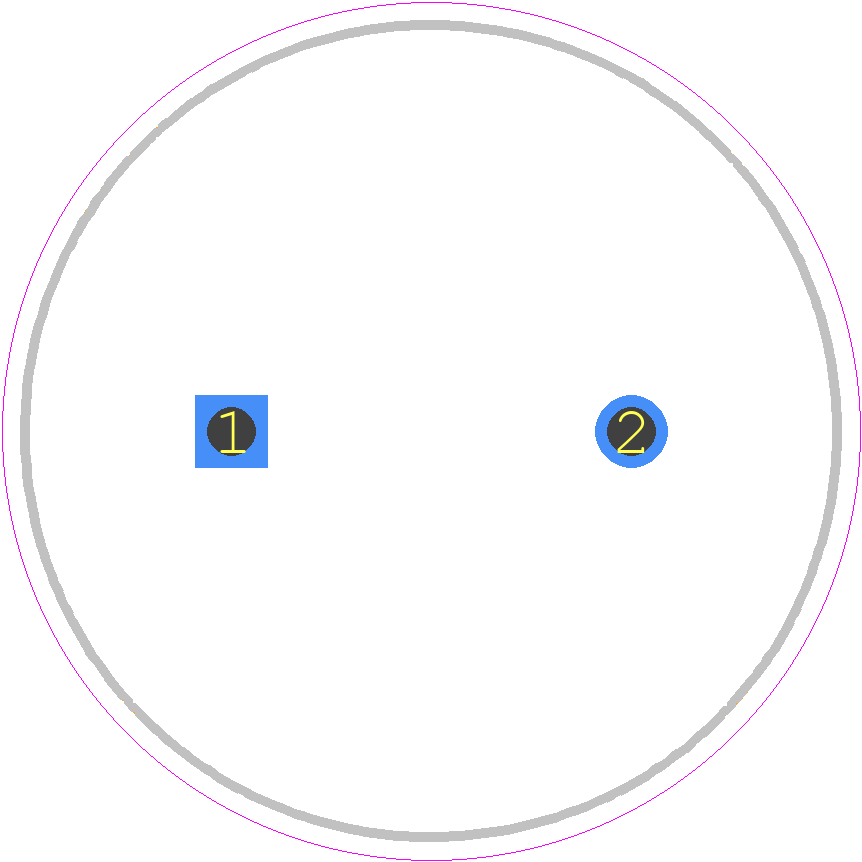

UVY1H472MRD - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - UVY (20.5X42)
click to zoom
3D Models
UVY1H472MRD - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - UVY (20.5X42)
click to zoom

UVY1H472MRD Details

  • Manufacturer Part Number:

    UVY1H472MRD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    20 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    7.05 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    2100 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    WIRE

UVY1H472MRD Frequently Asked Questions (FAQs)

  • Nichicon recommends a voltage derating of 80% or less to ensure reliable operation and prevent overheating.
  • The UVY1H472MRD is designed to operate up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult Nichicon's temperature derating charts for specific information.
  • Yes, the UVY1H472MRD is designed for high-frequency use, with a self-resonant frequency of around 100 kHz. However, its performance may vary depending on the specific application and frequency range.
  • Nichicon recommends using a reflow soldering process with a peak temperature of 260°C or less to prevent damage to the capacitor.
  • The UVY1H472MRD is designed to handle high ripple currents, with a maximum ripple current rating of 3.5 A rms at 100 kHz. However, excessive ripple current can reduce the capacitor's lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UVY1H472MRD Overview

Use the download button to access the UVY1H472MRD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UVY1H, or try a keyword search, such as Aluminum Electrolytic Capacitors
