Nichicon recommends a voltage derating of 10% to 20% for this capacitor to ensure reliable operation and to account for any voltage tolerances.
The ESR of the UVY2C102MRD is relatively low, which means it can handle high-frequency switching and reduce energy losses. However, it's essential to consider the ESR when designing the circuit to ensure optimal performance.
Yes, the UVY2C102MRD is designed for high-reliability applications, such as automotive, industrial, and aerospace. It meets the requirements of various industry standards, including AEC-Q200 and IEC 60384-16.
The UVY2C102MRD has a rated operating temperature range of -40°C to 105°C. Operating the capacitor within this range will help ensure its reliability and extend its lifespan. Exceeding the temperature limits can lead to premature aging and reduced performance.
Yes, it's essential to follow good PCB layout practices, such as keeping the capacitor close to the IC, using short traces, and avoiding vias under the capacitor to minimize parasitic inductance and ensure optimal performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UVY2C102MRD Overview

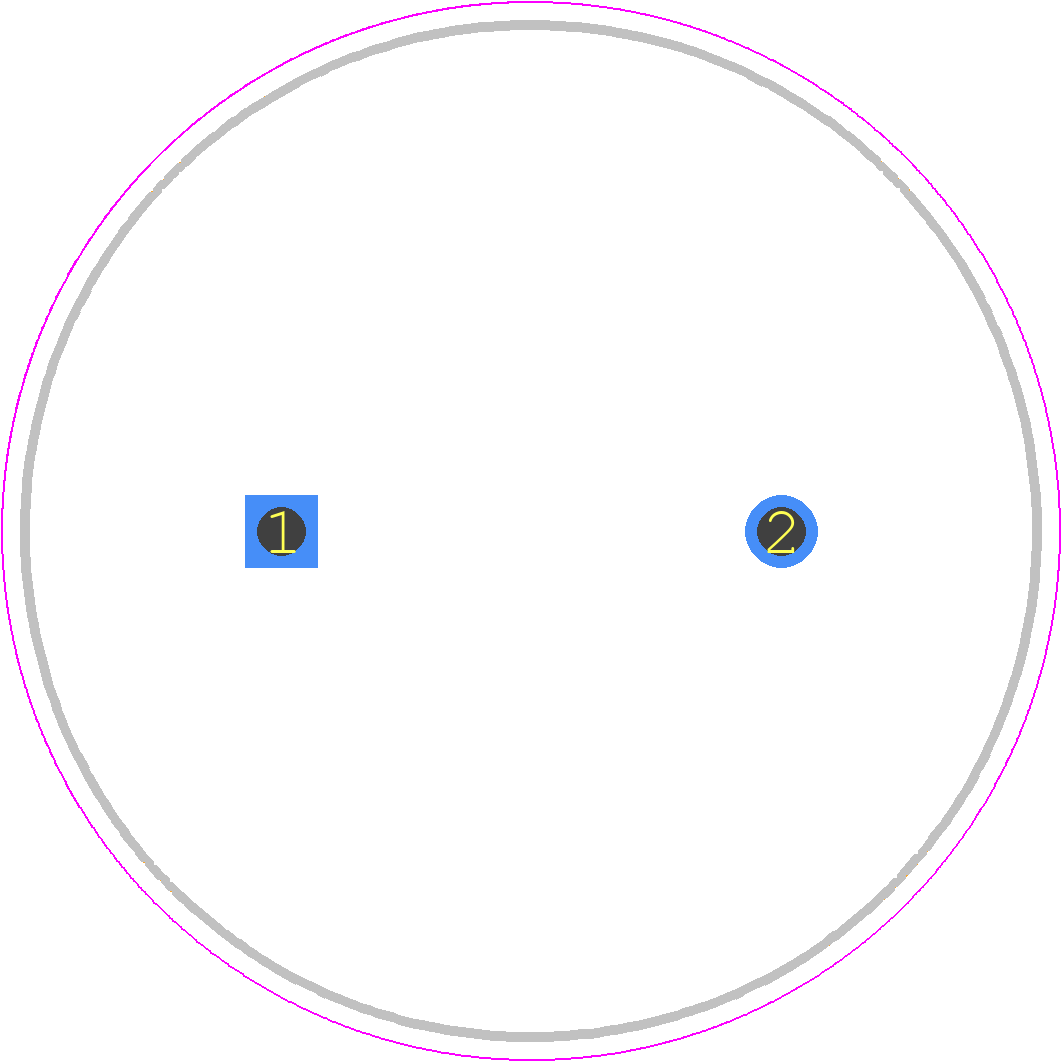

Use the download button to access the UVY2C102MRD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UVY2C,
or try a keyword search, such as Aluminum Electrolytic Capacitors
