UVY2E471MRD - Nichicon

Description: 470µF 250V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C

Download UVY2E471MRD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UVY2E471MRD - Nichicon - PCB symbol
click to zoom
PCB Footprints

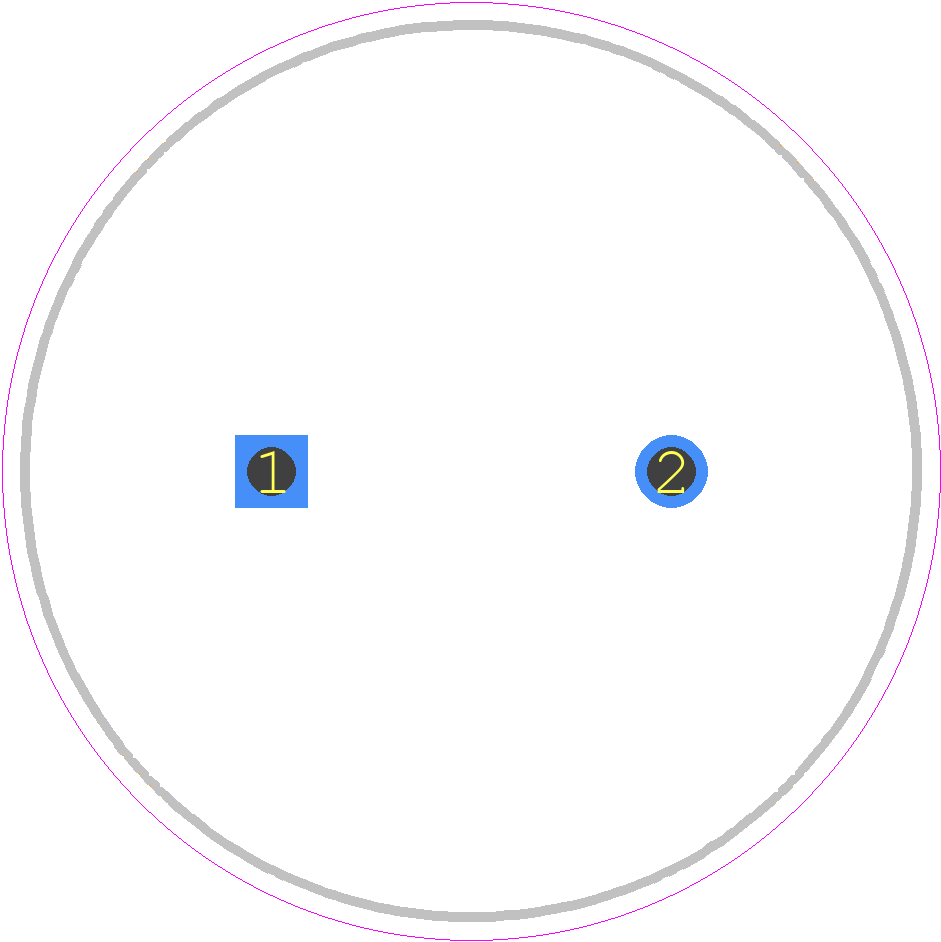

UVY2E471MRD - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22*50
click to zoom
3D Models
UVY2E471MRD - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 22*50
click to zoom

UVY2E471MRD Details

  • Manufacturer Part Number:

    UVY2E471MRD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    4.8 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    1000 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    WIRE

UVY2E471MRD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for UVY2E471MRD is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, UVY2E471MRD is designed to withstand high vibrations and can be used in applications where vibration is a concern. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and soldering.
  • Yes, UVY2E471MRD is compatible with lead-free soldering. Nichicon Corporation recommends using a lead-free solder alloy with a melting point of 217°C (423°F) or higher.
  • The ESR of UVY2E471MRD is not explicitly stated in the datasheet, but it can be estimated to be around 0.05 ohms or less, based on the capacitor's impedance characteristics.
  • UVY2E471MRD is rated for operation up to 125°C (257°F), but it's recommended to derate the capacitor's voltage and capacitance values at higher temperatures to ensure reliable operation.
