- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for UXY1V502MHW
- Part Number UXY1V502MHW
- Manufacturer Nichicon
- Pin Count 2
- Part Category Capacitor Polarised
- Package Category Capacitor, Polarized Radial Diameter

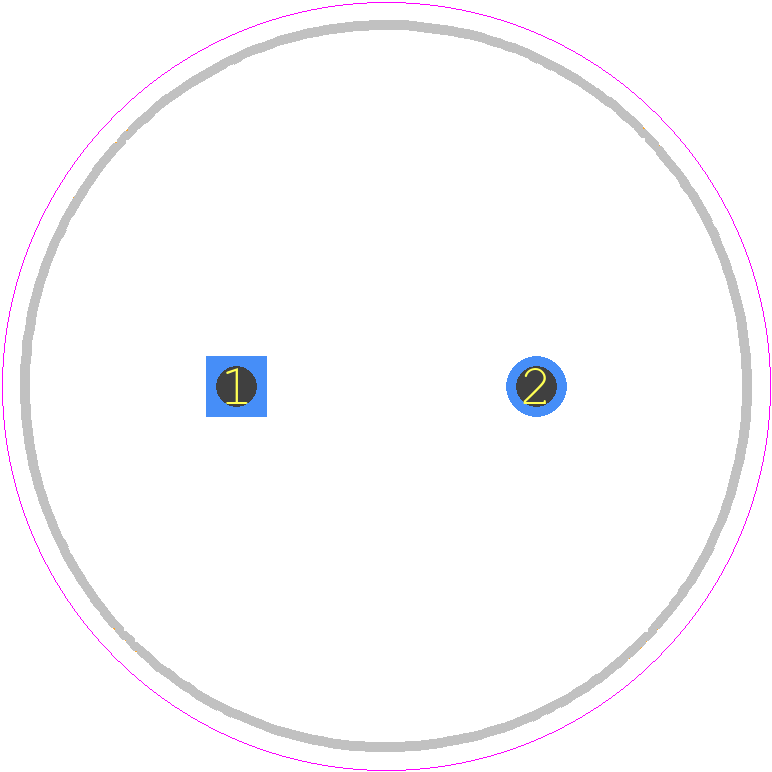

- Footprint Name Capacitor, Polarized Radial Diameter - 18*31.5/-
- Released Date Apr 27, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
UXY1V502MHW Details
-
Manufacturer Part Number:
UXY1V502MHW
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
RADIAL LEADED
-
Reach Compliance Code:
Not Compliant
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8532.22.00.20
-
Manufacturer:
Nichicon Corporation
-
YTEOL:
7.01
-
Capacitance:
5000 µF
UXY1V502MHW Frequently Asked Questions (FAQs)
-
The recommended soldering temperature for UXY1V502MHW is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the UXY1V502MHW capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
-
The ESR of the UXY1V502MHW capacitor is approximately 0.15 ohms at 100 kHz.
-
The UXY1V502MHW capacitor has a maximum operating temperature of 125°C, making it suitable for high-temperature applications. However, it's essential to consider the derating curve and ensure the capacitor operates within its specified ratings.
-
Yes, the UXY1V502MHW capacitor is suitable for audio applications due to its low ESR and high-frequency characteristics, making it ideal for filtering and decoupling in audio circuits.
Trust Checks
Community Provided
System Verified
Community Approved
UXY1V502MHW Overview
Use the download button to access the UXY1V502MHW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UXY1V,
or try a keyword search, such as Aluminum Electrolytic Capacitors
