Texas Instruments provides a recommended PCB layout in the VCA810IDG4 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The VCA810IDG4 requires a specific bias voltage and current to operate within its optimal range. Refer to the datasheet for the recommended bias conditions, and ensure that the voltage and current sources are stable and well-regulated to maintain optimal linearity and gain.
The maximum power dissipation of the VCA810IDG4 is approximately 1.4W. To prevent overheating, ensure good thermal management by providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from other heat sources.
Yes, the VCA810IDG4 can be used in a differential amplifier configuration. However, it's essential to ensure that the input common-mode voltage is within the recommended range, and the output stage is properly biased to maintain optimal performance.
To minimize noise and distortion, use a low-noise power supply, ensure good PCB layout practices, and use adequate bypassing and filtering. Additionally, consider using a low-pass filter at the output to reduce high-frequency noise and distortion.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VCA810IDG4 Overview

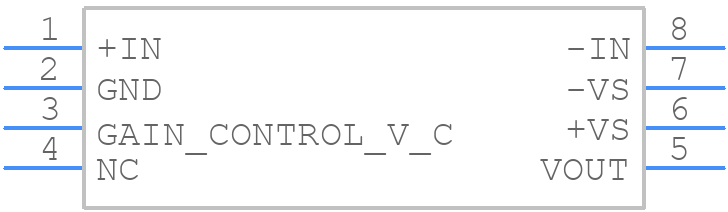

Use the download button to access the VCA810IDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VCA81,
or try a keyword search, such as Operational Amplifiers
