VFC110AP - Texas Instruments

Description: VFC110AP, Voltage to Frequency Converter 4000kHz ±1%FSR, 14-Pin PDIP

Download VFC110AP Model

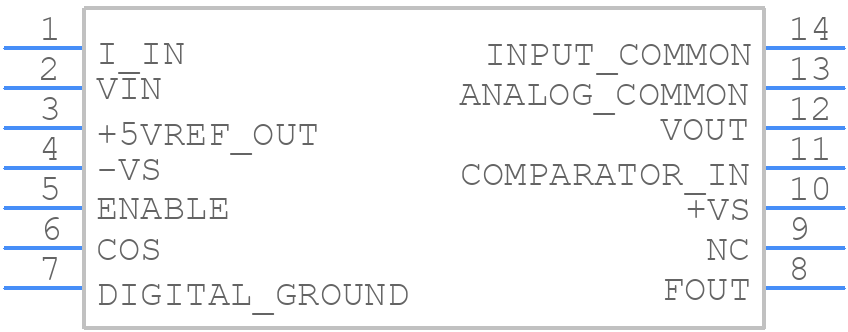

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

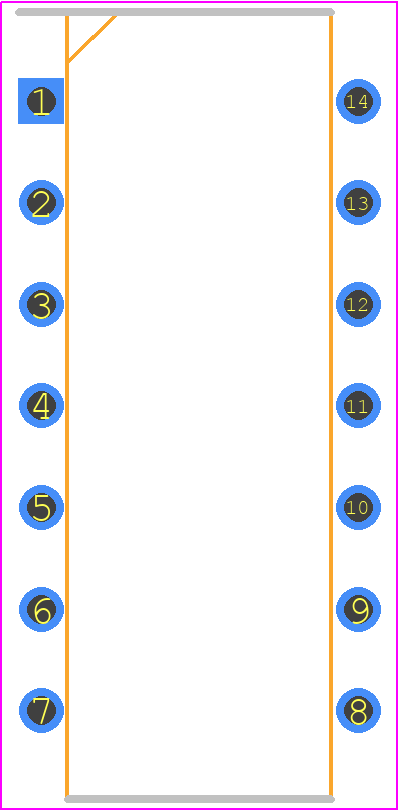

VFC110AP - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14 pdip
click to zoom
3D Models
VFC110AP - Texas Instruments  - 3D model - Dual-In-Line Packages - 14 pdip
click to zoom

VFC110AP Details

  • Manufacturer Part Number:

    VFC110AP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    VOLTAGE TO FREQUENCY CONVERTER

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e4

  • Length:

    19.18 mm

  • Linearity Error-Max (EL):

    0.1%

  • Negative Supply Voltage-Max:

    -18 V

  • Negative Supply Voltage-Min:

    -8 V

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Frequency-Max:

    4 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Positive Input Voltage-Max:

    10 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

VFC110AP Frequently Asked Questions (FAQs)

  • A good PCB layout for the VFC110AP involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
  • The choice of input and output capacitors for the VFC110AP depends on the specific application and the desired performance. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired filtering characteristics and the impedance of the input and output stages.
  • The maximum power dissipation of the VFC110AP is 1.4W. To ensure that it does not overheat, it's recommended to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device in a well-ventilated area. Additionally, the device should be operated within the recommended temperature range of -40°C to 125°C.
  • The VFC110AP can be configured for a specific output voltage and frequency by adjusting the values of the external resistors and capacitors. The output voltage can be set using the feedback resistors, while the frequency can be set using the oscillator resistors and capacitors. The specific values can be calculated using the equations provided in the datasheet or by using TI's online calculator tools.
  • The VFC110AP is designed to meet the EMI and EMC requirements of various regulatory standards, such as CISPR 22 and FCC Part 15. To ensure compliance, it's recommended to follow good PCB layout practices, use shielding and filtering where necessary, and to perform EMI and EMC testing during the design and validation process.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VFC110AP Overview

Use the download button to access the VFC110AP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VFC11, or try a keyword search, such as Analog Special Function Converters
