- Part Number VFC320BG
- Manufacturer Texas Instruments
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - 14 Ld PDIP
- Released Date Apr 16, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
VFC320BG Details
-
Manufacturer Part Number:
VFC320BG
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
CERAMIC, DIP-14
-
Pin Count:
14
-
HTS Code:
8542.39.00.50
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Converter Type:
VOLTAGE TO FREQUENCY CONVERTER
VFC320BG Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the VFC320BG evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
-
The output filter design depends on the specific application requirements, such as output voltage, current, and ripple. TI provides a filter design tool and application notes that can help engineers optimize the output filter design for their specific use case.
-
The maximum junction temperature (Tj) for the VFC320BG is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
-
Yes, the VFC320BG is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is suitable for use in harsh environments.
-
To ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering as needed, and ensure that the device is operated within its specified frequency range. TI also provides EMC-related application notes and guidelines.
Trust Checks
Community Provided
System Verified
Community Approved
VFC320BG Overview

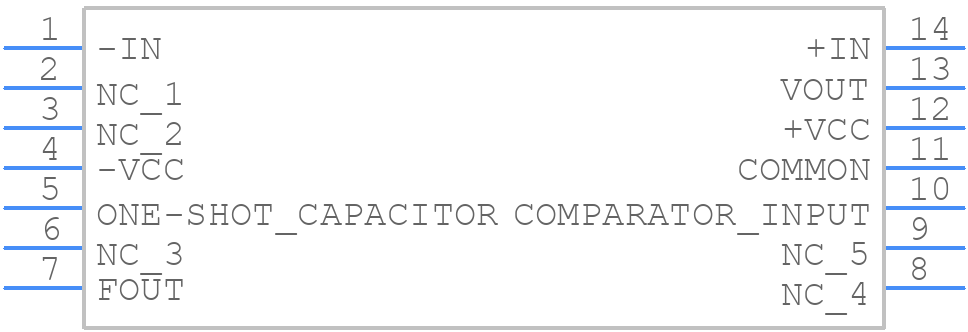

Use the download button to access the VFC320BG schematic symbol, PCB footprint, and 3D model.
