Part Image

VIPER26LD - STMicroelectronics

Description: --

Download VIPER26LD Model

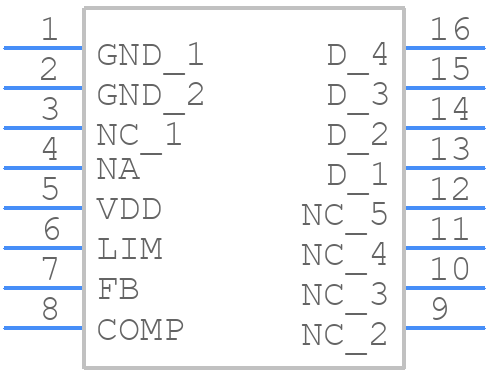

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
VIPER26LD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ST SO-16N_2
click to zoom
3D Models
VIPER26LD - STMicroelectronics  - 3D model - Small Outline Packages - ST SO-16N_2
click to zoom

VIPER26LD Details

  • Manufacturer Part Number:

    VIPER26LD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    35 Weeks

  • Manufacturer:

    STMicroelectronics

  • Risk Rank:

    0.72

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    23.5 V

  • Supply Voltage-Min (Vsup):

    11.5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    66 kHz

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VIPER26LD Overview

Use the download button to access the VIPER26LD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VIPER, or try a keyword search, such as Other Analog ICs

Parts related to VIPER26LD

Showing 0 results

VIPER26LD Alternates

Showing results

Image Part Number Model
Part Image VIPER26LDTR STMicroelectronics

Fixed frequency VIPer plus family
