A good PCB layout for VIPER26LDTR involves keeping the high-frequency switching nodes (e.g., drain and source of the power MOSFET) as close as possible to the IC, using a solid ground plane, and minimizing the length of the traces carrying high-frequency signals.
To ensure the VIPER26LDTR operates within its SOA, monitor the IC's junction temperature, output current, and input voltage. Ensure the IC is properly heatsinked, and the output current is within the recommended range. Also, use a suitable input voltage and ensure the IC is not exposed to excessive voltage spikes or transients.
When selecting a transformer for use with VIPER26LDTR, consider the transformer's turns ratio, inductance, and core material. Ensure the transformer is designed for the specific output voltage and power requirements of your application. Also, consider the transformer's physical size, cost, and reliability.
To troubleshoot common issues with VIPER26LDTR, start by checking the input voltage, output voltage, and output current. Verify that the IC is properly heatsinked and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature or burning smells. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
VIPER26LDTR is a high-voltage, high-current offline switcher IC with a built-in power MOSFET. It differs from other STMicroelectronics ICs in its specific voltage and current ratings, as well as its feature set, which includes overvoltage protection, undervoltage lockout, and thermal shutdown. Consult the datasheet and application notes for a detailed comparison with other ICs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VIPER26LDTR Overview

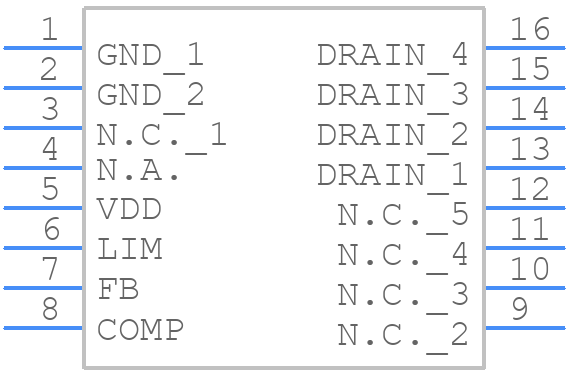

Use the download button to access the VIPER26LDTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VIPER,
or try a keyword search, such as Switching Regulator or Controllers
About STMicroelectronics
STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components.
STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
