VN5E010AFHTR-E footprint, schematic symbol and 3D model by STMicroelectronics

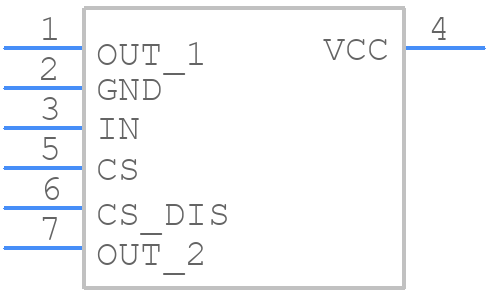

Symbol

click to zoom

PCB Footprints

VN5E010AFHTR-E - STMicroelectronics PCB footprint - Other - Other - VN5E010AFHTR-E-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VN5E010AFHTR-E
Part Number VN5E010AFHTR-E
Manufacturer STMicroelectronics
Pin Count 7
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - VN5E010AFHTR-E-3
Released Date Dec 14, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

VN5E010AFHTR-E Details

Manufacturer Part Number:
VN5E010AFHTR-E
Rohs Code:
Yes
Part Life Cycle Code:
Active Unconfirmed
Package Description:
HPAK-7/6
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
7
Adjustable Threshold:
NO
Analog IC - Other Type:
POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code:
R-PSSO-G6
Length:
6.5 mm
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
6
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SMSIP6H,.38,33TB
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Screening Level:
AEC-Q100
Seated Height-Max:
2.4 mm
Supply Current-Max (Isup):
3 mA
Supply Voltage-Max (Vsup):
28 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
13 V
Surface Mount:
YES
Technology:
VIPOWERM0-5
Terminal Form:
GULL WING
Terminal Pitch:
0.85 mm
Terminal Position:
SINGLE
Threshold Voltage-Nom:
+3.5V
Width:
6.1 mm

VN5E010AFHTR-E Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN4888, which includes guidelines for thermal pad connection, copper pouring, and via placement to ensure optimal thermal performance.
The input capacitor selection depends on the input voltage, frequency, and ripple current. A general guideline is to choose a capacitor with a capacitance value between 1-10uF, a voltage rating higher than the input voltage, and a low ESR (Equivalent Series Resistance). STMicroelectronics recommends using a ceramic or film capacitor with a voltage rating of at least 50V.
The maximum allowed voltage on the enable pin (EN) is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage limiter or a resistor divider network to ensure the voltage on the EN pin does not exceed 6V.
The VN5E010AFHTR-E is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure the device is properly cooled to maintain its performance and lifespan.
Common issues include incorrect input voltage, incorrect enable pin configuration, or incorrect output capacitor selection. Check the input voltage, enable pin voltage, and output capacitor value. Also, ensure the device is properly soldered and the PCB layout is correct. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VN5E010AFHTR-E Overview

Use the download button to access the VN5E010AFHTR-E schematic symbol and PCB footprint.
