VN5E010MHTR-E - STMicroelectronics

Description: Single-channel high-side driver with analog current sense for automotive applications

Download VN5E010MHTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

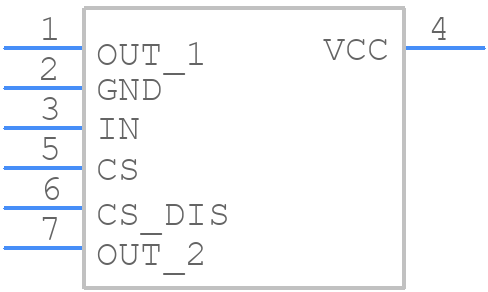

VN5E010MHTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN5E010MHTR-E - STMicroelectronics PCB footprint - Other - Other - VN5E010MHTR-E-3
click to zoom
3D Models
VN5E010MHTR-E - STMicroelectronics - 3D model - Other - VN5E010MHTR-E-3
click to zoom

VN5E010MHTR-E Details

  • Manufacturer Part Number:

    VN5E010MHTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    ROHS COMPLIANT, HPAK-6

  • Pin Count:

    6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.98

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

VN5E010MHTR-E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the VN5E010MHTR-E is -40°C to 150°C.
  • The VN5E010MHTR-E requires a 5V power supply, and it's recommended to use a decoupling capacitor (e.g., 100nF) close to the device to ensure stable operation.
  • The maximum current rating for the VN5E010MHTR-E is 1.5A per channel, with a total current limit of 3A for the entire device.
  • The VN5E010MHTR-E can be configured for high-side or low-side switching by connecting the input pins (IN1 and IN2) to the corresponding output pins (OUT1 and OUT2) and setting the enable pin (EN) accordingly.
  • The typical rise and fall time for the VN5E010MHTR-E is around 10ns, but this can vary depending on the load and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN5E010MHTR-E Overview

Use the download button to access the VN5E010MHTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN5E0, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
