VN772KPTR-E - STMicroelectronics

Description: Quad smart power solid state relay for complete H-bridge configurations

Download VN772KPTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

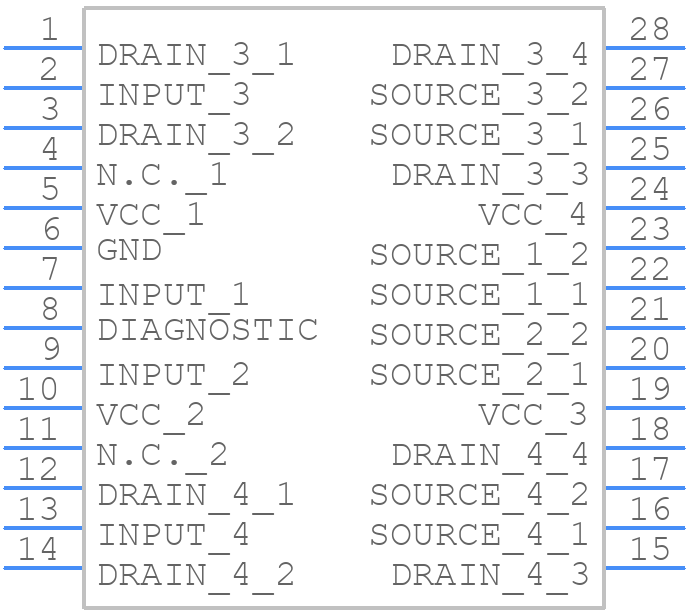

VN772KPTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN772KPTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-28
click to zoom

VN772KPTR-E Details

  • Manufacturer Part Number:

    VN772KPTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

VN772KPTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The VN772KPTR-E has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured to enter a low-power state by setting the STBY pin high. Refer to the datasheet section 7.3 for more information on power management.
  • The VN772KPTR-E is rated for operation from -40°C to 150°C (junction temperature). However, the device can be operated up to 175°C with derating. Refer to the datasheet section 6.1 for more information on thermal characteristics.
  • Common issues that prevent the device from turning on include incorrect pin connections, insufficient power supply, or faulty components. Check the datasheet section 7.1 for pin descriptions and ensure that the power supply meets the recommended voltage and current requirements. Also, verify that the EN pin is properly connected and driven.
  • The VN772KPTR-E is designed to withstand vibrations up to 10g (rms) from 10 Hz to 2 kHz. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN772KPTR-E Overview

Use the download button to access the VN772KPTR-E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VN772, or try a keyword search, such as Motion Control Electronics
