VN9008AJTR - STMicroelectronics

Description: Single channel high-side driver with Current Sense analog feedback for automotive applications

Download VN9008AJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

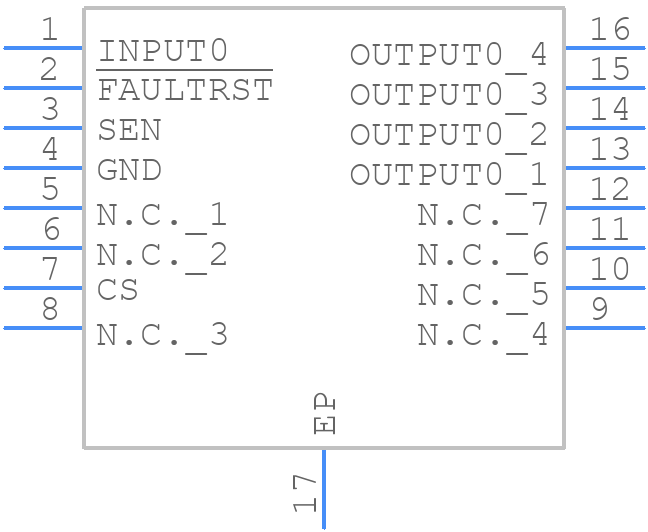

Symbol
VN9008AJTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN9008AJTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-16_1
click to zoom
3D Models
VN9008AJTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-16_1
click to zoom

VN9008AJTR Details

  • Manufacturer Part Number:

    VN9008AJTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP16,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max (Isup):

    4.5 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3V

  • Width:

    3.9 mm

VN9008AJTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The VN9008AJTR has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured for low-power mode by setting the appropriate registers using the SPI interface. Refer to the datasheet and application notes for detailed instructions.
  • The VN9008AJTR is rated for operation from -40°C to 150°C (junction temperature). However, the device can be operated up to 125°C (ambient temperature) with derating. Refer to the datasheet for detailed thermal characteristics and derating information.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4899, which includes common issues, symptoms, and solutions. Additionally, engineers can use the device's built-in diagnostic features, such as the fault detection and reporting mechanism, to identify and debug issues.
  • The VN9008AJTR requires a stable power supply to operate correctly. STMicroelectronics recommends using a low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR) and a low equivalent series resistance (ESR) capacitor. Refer to the datasheet and application notes for detailed recommendations on component selection and PCB layout.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN9008AJTR Overview

Use the download button to access the VN9008AJTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN900, or try a keyword search, such as Power Management Circuits
