VN9012AJTR - STMicroelectronics

Description: Single channel high-side driver with current sense analog feedback for automotive applications

Download VN9012AJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

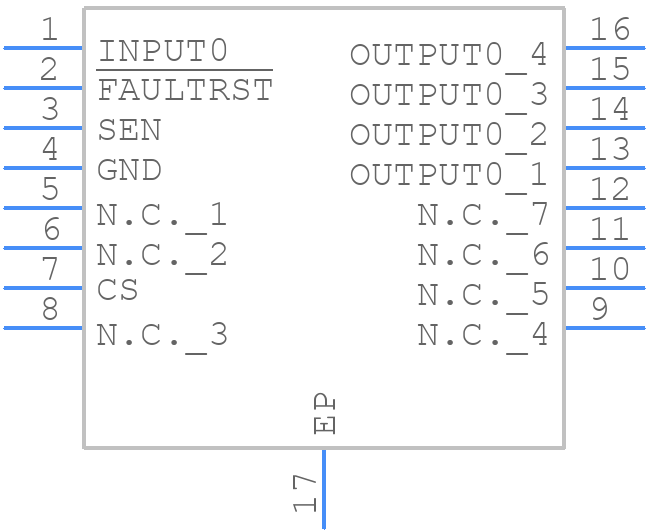

Symbol
VN9012AJTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN9012AJTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - . PowerSSO-16 mechanical data
click to zoom
3D Models
VN9012AJTR - STMicroelectronics - 3D model - Small Outline Packages - . PowerSSO-16 mechanical data
click to zoom

VN9012AJTR Details

  • Manufacturer Part Number:

    VN9012AJTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP16,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max (Isup):

    2.5 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3V

  • Width:

    3.9 mm

VN9012AJTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The VN9012AJTR has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured to enter a low-power state by setting the STBY pin high. Refer to the datasheet section 7.3 for more information on power management.
  • The VN9012AJTR is rated for operation from -40°C to 150°C (junction temperature). However, the device can be operated up to 175°C for short periods of time (e.g., during engine cranking). Refer to the datasheet section 4.1 for more information on operating conditions.
  • The VN9012AJTR has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. However, it's recommended to add external protection components, such as TVS diodes and fuses, to ensure robust protection against voltage surges and overcurrent conditions.
  • STMicroelectronics recommends using a ceramic capacitor with a value of 10 μF to 22 μF, and a voltage rating of 25 V or higher, as close as possible to the VIN pin. This helps to filter out noise and ensure stable operation.
