VN920DSPTR-E - STMicroelectronics

Description: High side driver, 16 mΩ , 25 A, 36 V

Download VN920DSPTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

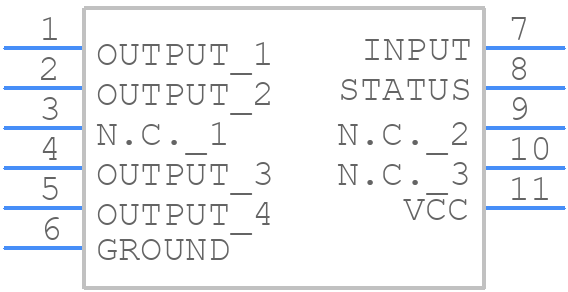

Symbol
VN920DSPTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN920DSPTR-E - STMicroelectronics PCB footprint - Other - Other - PowerSO-10_2026_0
click to zoom

VN920DSPTR-E Details

  • Manufacturer Part Number:

    VN920DSPTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    POWER, SO-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    0.005 A

  • Output Peak Current Limit-Nom:

    45 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.65 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VN920DSPTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5333, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The VN920DSPTR-E is a highly configurable device that can be programmed to support various automotive bus protocols such as CAN, LIN, and SAE J1939. The configuration is done through the SPI interface using a dedicated software development kit (SDK) provided by STMicroelectronics.
  • The VN920DSPTR-E is rated for operation in the -40°C to 125°C temperature range, making it suitable for use in harsh automotive environments.
  • To ensure EMC, it is recommended to follow the guidelines provided in the application note AN5333, which includes information on PCB layout, component selection, and shielding. Additionally, the VN920DSPTR-E has built-in features such as electromagnetic emission reduction and immunity to electromagnetic interference.
  • The power consumption of VN920DSPTR-E varies depending on the operating mode. In normal operation, the device consumes around 100 mA. In standby mode, the power consumption is reduced to around 10 mA. The exact power consumption can be found in the datasheet or by contacting STMicroelectronics support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN920DSPTR-E Overview

Use the download button to access the VN920DSPTR-E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VN920, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
