TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
2
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G36
JESD-609 Code:
e3
Length:
10.3 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
36
Output Current Flow Direction:
SINK
Output Current-Max:
5 A
Output Peak Current Limit-Nom:
76 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SSOP36,.4,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
2.47 mm
Supply Voltage-Max:
28 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
13 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm
VND5E008AY-E Frequently Asked Questions (FAQs)
The maximum operating temperature range for the VND5E008AY-E is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and minimizing power dissipation. Additionally, consider using a thermally enhanced package or a heat sink to reduce the junction temperature.
For optimal performance and reliability, it's recommended to follow a 4-layer PCB design with a solid ground plane, use a minimum of 1 oz copper thickness, and ensure a low-impedance path for the power supply and ground connections. Additionally, keep the PCB layout symmetrical and balanced to minimize electromagnetic interference (EMI).
To troubleshoot issues with the VND5E008AY-E, start by verifying the power supply voltage and current, checking for any signs of overheating, and ensuring that the device is properly soldered and connected. Use oscilloscopes or logic analyzers to monitor the device's behavior and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the VND5E008AY-E is sensitive to electrostatic discharge (ESD). To prevent ESD damage, handle the device with anti-static wrist straps, mats, or bags, and ensure that the PCB design includes ESD protection diodes or resistors. Follow proper ESD handling and storage procedures to prevent damage during manufacturing, testing, and shipping.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VND5E008AY-E Overview

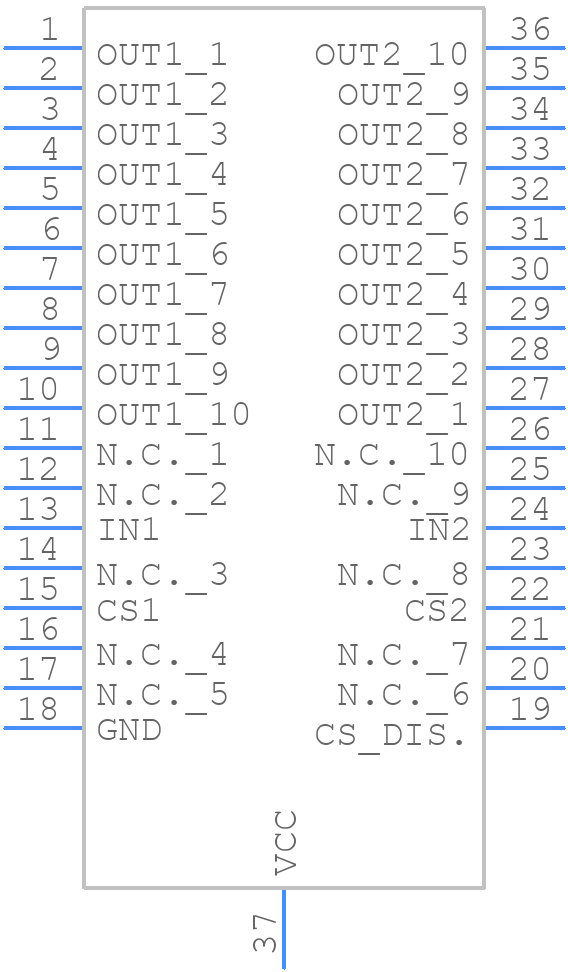

Use the download button to access the VND5E008AY-E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VND5E,
or try a keyword search, such as Peripheral Drivers
