VND830LSP13TR - STMicroelectronics

Description: Power Switch/Driver 1:1 N-Channel 18A 10-PowerSO

Download VND830LSP13TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

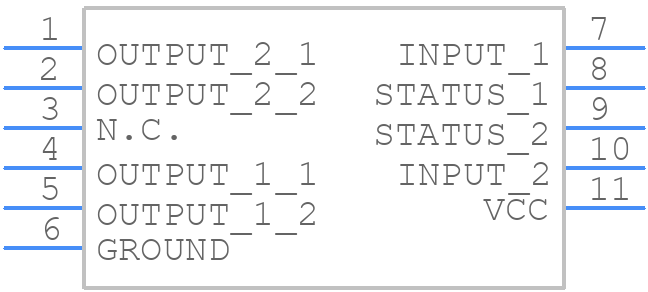

Symbol
VND830LSP13TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND830LSP13TR - STMicroelectronics PCB footprint - Other - Other - PowerSO-10_20
click to zoom

VND830LSP13TR Details

  • Manufacturer Part Number:

    VND830LSP13TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWER, SO-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    23 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.75 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VND830LSP13TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of external components such as resistors, capacitors, and inductors depends on the specific application and operating conditions. STMicroelectronics provides a component selection guide in the application note AN4979, which includes formulas and guidelines for selecting the correct components.
  • The VND830LSP13TR is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4979, which includes common issues, symptoms, and solutions. Additionally, the datasheet and other application notes provide information on fault detection and diagnosis.
  • When working with the VND830LSP13TR, it's essential to follow proper safety precautions to avoid electrical shock, injury, or damage to the device. STMicroelectronics provides safety guidelines in the datasheet and application notes, including information on handling, storage, and disposal.
