VND9008AJTR - STMicroelectronics

Description: Double channel high-side driver with current sense analog feedback for automotive applications

Download VND9008AJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

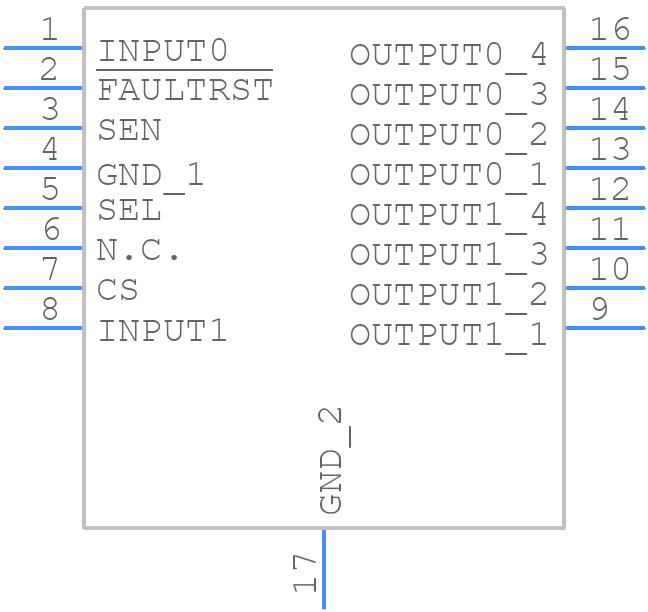

VND9008AJTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND9008AJTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - **PowerSSO-16(H=1.7mm)
click to zoom
3D Models
VND9008AJTR - STMicroelectronics - 3D model - Small Outline Packages - **PowerSSO-16(H=1.7mm)
click to zoom

VND9008AJTR Details

  • Manufacturer Part Number:

    VND9008AJTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.9 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    3

  • Width:

    3.9 mm

VND9008AJTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5333, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The VND9008AJTR has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured to enter a low-power state by setting the SPI registers accordingly. Refer to the datasheet and application notes for specific register settings and configuration details.
  • The VND9008AJTR is rated for operation from -40°C to 125°C, but the device's performance and accuracy may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation to maintain optimal performance.
  • Common issues with the SPI interface include incorrect clock polarity, phase, or frequency. Verify that the SPI clock frequency is within the recommended range (up to 10 MHz), and ensure that the clock polarity and phase match the device's configuration. Also, check for proper signal termination and routing to minimize signal reflections and noise.
  • STMicroelectronics recommends using a 10 μF ceramic capacitor and a 100 nF ceramic capacitor in parallel, placed as close as possible to the device's power supply pins, to ensure proper power supply decoupling and noise filtering.
