VNH5019ATR-E - STMicroelectronics

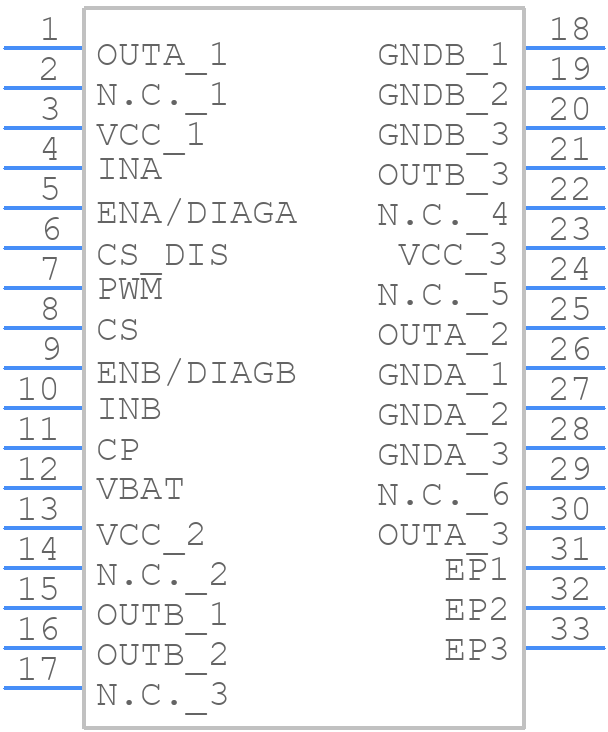

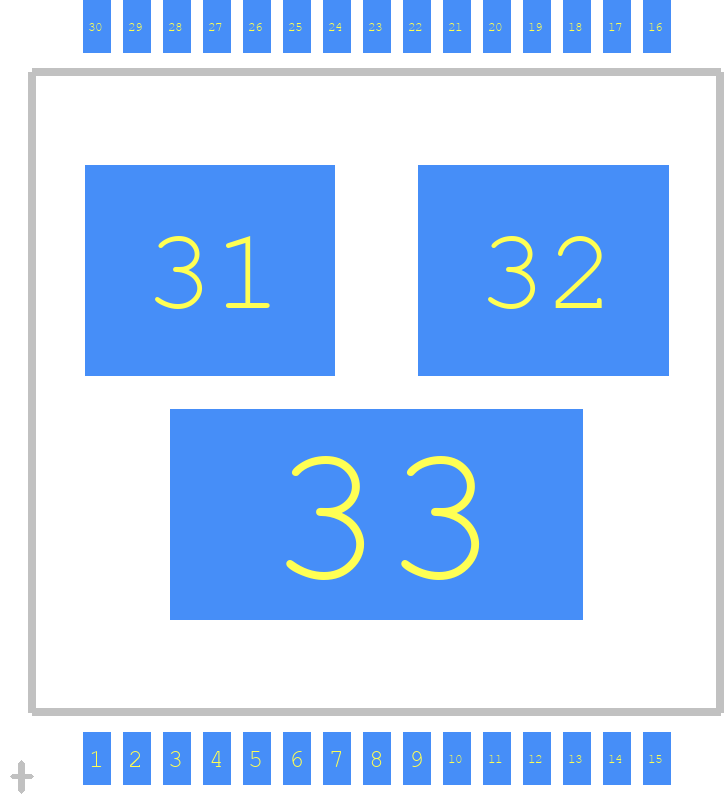

VNH5019ATR-E Details

• Manufacturer Part Number:

  VNH5019ATR-E

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  POWERSOP-30

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  26 Weeks

• Date Of Intro:

  2017-06-30

• Manufacturer:

  STMicroelectronics

• Analog IC - Other Type:

  HALF BRIDGE BRUSH DC MOTOR CONTROLLER

• JESD-30 Code:

  R-PDSO-G30

• JESD-609 Code:

  e3

• Length:

  17.2 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  30

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  30 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSSOP

• Package Equivalence Code:

  SSOP30,.75,40

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  2.35 mm

• Supply Current-Max (Isup):

  8 mA

• Supply Voltage-Max (Vsup):

  24 V

• Supply Voltage-Min (Vsup):

  5.5 V

• Supply Voltage-Nom (Vsup):

  13 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  16 mm
