VO3063-X007T - Vishay

Description: Triac & SCR Output Optocouplers Zero Crossing Photo Triac 600V 5mA

Download VO3063-X007T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

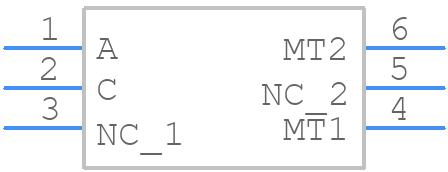

VO3063-X007T - Vishay - PCB symbol
click to zoom
PCB Footprints

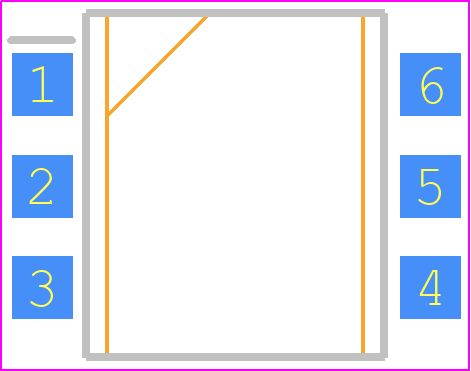

VO3063-X007T - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - VO3063-X007T
click to zoom
3D Models
VO3063-X007T - Vishay - 3D model - Small Outline Packages - VO3063-X007T
click to zoom

VO3063-X007T Details

  • Manufacturer Part Number:

    VO3063-X007T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.5

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.06 A

  • Input Trigger Current-Max:

    0.005 A

  • Isolation Voltage-Max:

    4420 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Peak Off-state Voltage-Min:

    600 V

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Reverse Leakage Current-Max:

    0.00001 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)
