Description:The VRE310 series of low cost, zener-based precision Integrated Circuits provides ultra-stable +10V output with ±1.0mV (.01%) initial accuracy. This improvement in accuracy is made possible by a unique proprietary multipoint laser compensation technique. Significant improvements have been made in other performance parameters, including warm-up drift, line regulation, and long-term stability, to make this series the most accurate and stable available in an industry standard 8-pin SMT or DIP package. Tempera
Apex Microtechnology recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a heat sink or thermal pad can be used to further improve thermal management.
To ensure proper biasing, follow the recommended biasing circuit in the datasheet, and ensure the input voltage is within the specified range. Additionally, use a low-noise, low-impedance power supply, and decouple the power supply lines with capacitors to minimize noise and ripple.
The maximum safe operating area (SOA) for the VRE310AD is not explicitly stated in the datasheet. However, Apex Microtechnology recommends following the absolute maximum ratings and operating conditions specified in the datasheet to ensure safe operation. Additionally, it's recommended to derate the device's power dissipation based on the ambient temperature and thermal management.
To troubleshoot and diagnose common issues with the VRE310AD, start by verifying the PCB layout and component values match the recommended design. Check for proper power supply decoupling, and ensure the input and output signals are within the specified ranges. Use an oscilloscope to monitor the output signal and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
To prevent damage to the VRE310AD, store the devices in their original packaging or in a dry, ESD-protected environment. Avoid exposing the devices to extreme temperatures, humidity, or physical stress. Handle the devices by the body, not the leads, and use ESD-protective equipment and clothing when handling the devices.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VRE310AD Overview

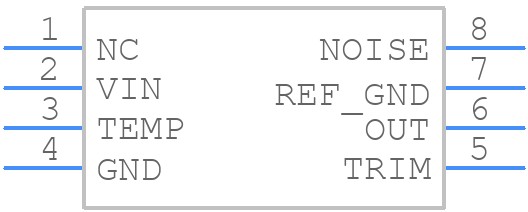

Use the download button to access the VRE310AD schematic symbol, PCB footprint, and 3D model.
