PARALLEL, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR
Gate-Emitter Thr Voltage-Max:
6.2 V
Gate-Emitter Voltage-Max:
20 V
JESD-30 Code:
R-PUFM-P14
Number of Elements:
2
Number of Terminals:
14
Operating Temperature-Max:
150 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
57 W
Reference Standard:
UL RECOGNIZED
Surface Mount:
NO
Terminal Form:
PIN/PEG
Terminal Position:
UPPER
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
POWER CONTROL
Transistor Element Material:
SILICON
Turn-off Time-Nom (toff):
458 ns
Turn-on Time-Nom (ton):
247 ns
VS-150MT060WDF Frequently Asked Questions (FAQs)
The recommended PCB footprint for the VS-150MT060WDF is a rectangular pad with dimensions of 6.5mm x 3.5mm, with a 1.5mm x 1.5mm thermal pad in the center. The pad should have a solder mask defined (SMD) and a non-solder mask defined (NSMD) area around the thermal pad.
To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 217°C to 221°C. Apply a small amount of solder paste to the PCB pads, and use a reflow oven or a hot air gun to solder the component. Avoid using excessive solder or flux, as it can cause bridging or shorts.
The maximum operating temperature range for the VS-150MT060WDF is -55°C to 150°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
The VS-150MT060WDF is not designed for use in high-humidity environments. It is recommended to use a conformal coating or potting compound to protect the device from moisture and humidity. Additionally, ensure that the PCB is designed with moisture-resistant materials and has adequate drainage to prevent water accumulation.
The VS-150MT060WDF is an ESD-sensitive device. Handle it with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that the PCB and assembly process also follow ESD protection guidelines to prevent damage during manufacturing and handling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VS-150MT060WDF Overview

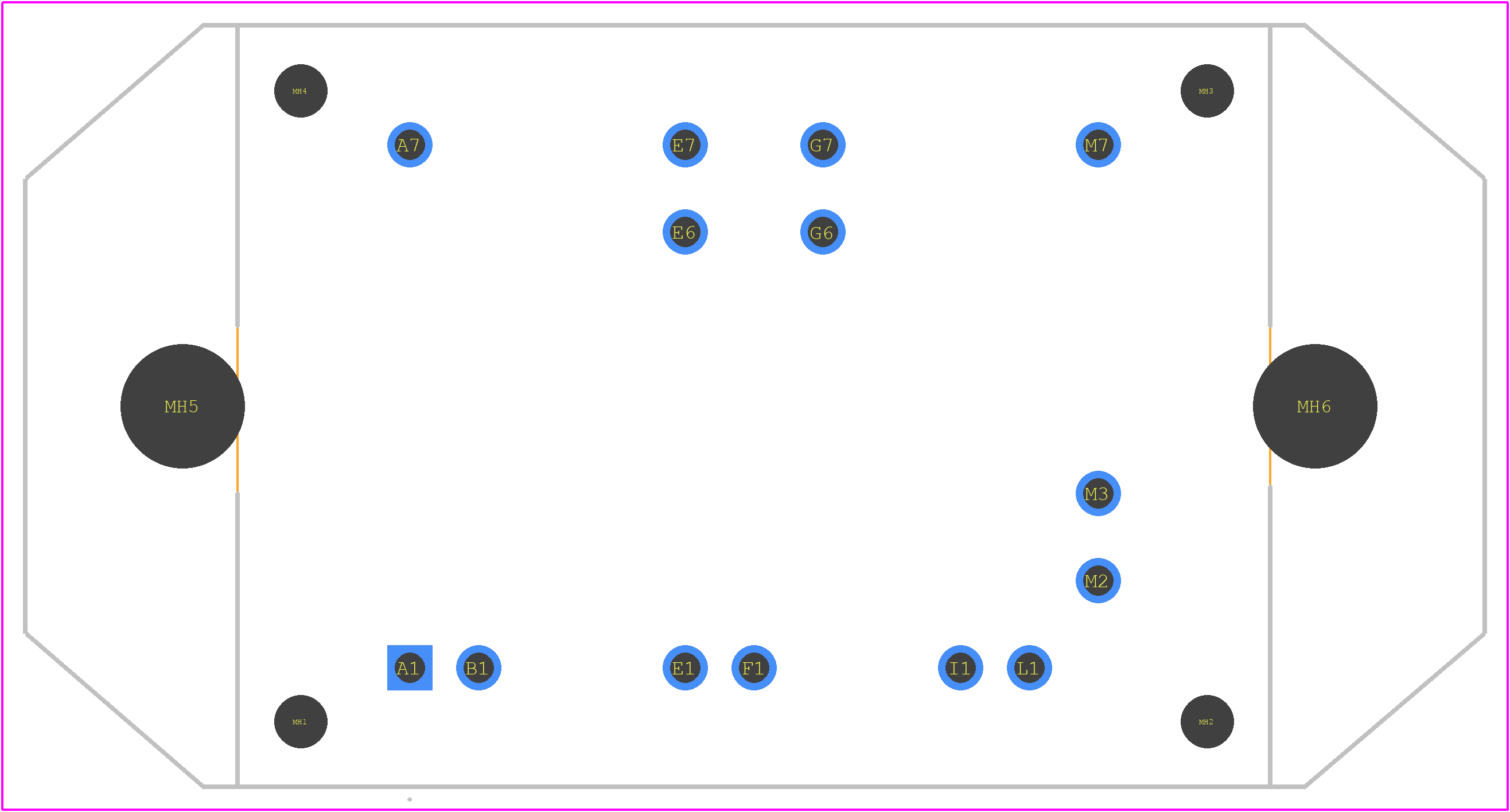

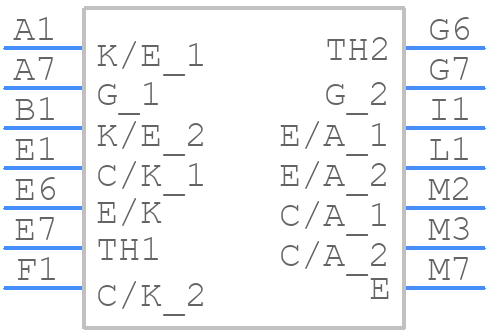

Use the download button to access the VS-150MT060WDF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VS-15,
or try a keyword search, such as IGBTs
