Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and keeping analog and digital signals separate.
To minimize power consumption, ensure that the device is in the correct power mode (e.g., standby or shutdown) when not in use. Additionally, adjust the clock frequency, voltage regulator settings, and disable unused peripherals to reduce power consumption.
The VSP1221PFB has a maximum junction temperature of 150°C. Ensure proper heat dissipation by using a heat sink, thermal vias, and a thermal interface material. Also, consider the thermal resistance of the PCB and the ambient temperature.
Use a logic analyzer or oscilloscope to verify the I2C clock and data signals. Check the pull-up resistor values, signal integrity, and ensure that the I2C bus is not overloaded. Also, review the I2C protocol and device addressing to ensure correct configuration.
The VSP1221PFB has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing, testing, and assembly. Use ESD-safe materials, grounding straps, and ensure that the device is properly connected to a ground plane.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VSP1221PFB Overview

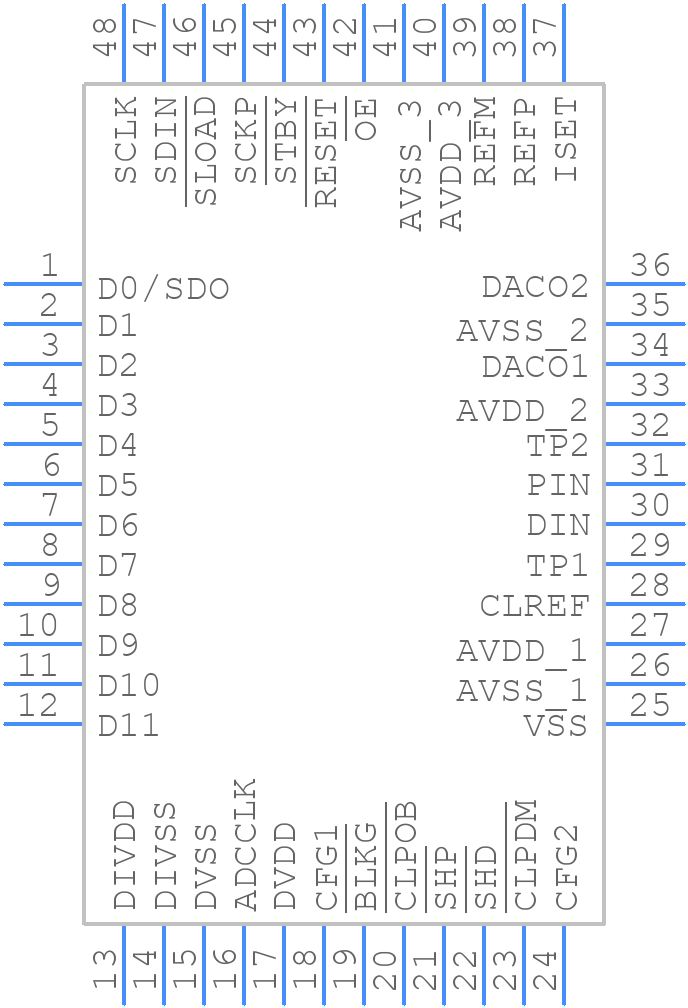

Use the download button to access the VSP1221PFB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VSP12,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
