Texas Instruments provides a recommended PCB layout in the VSP1900DBT evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The VSP1900DBT supports various video formats, including HDMI, DisplayPort, and VGA. Configuration is done through the device's registers, which can be accessed through the I2C interface. Refer to the device's programming guide for specific register settings and configuration examples.
The VSP1900DBT supports cable lengths up to 30 meters for HDMI and DisplayPort, and up to 10 meters for VGA, depending on the specific application and signal quality requirements. However, it's recommended to use high-quality cables and follow proper cable termination and routing practices to ensure signal integrity.
Common issues like signal loss or distortion can be troubleshooted by checking the device's configuration, signal quality, and cable integrity. Use tools like oscilloscopes or signal analyzers to verify signal integrity, and consult the device's troubleshooting guide for specific guidance on resolving common issues.
The VSP1900DBT is a hardware device that operates independently of operating systems or software. However, the device's configuration and control may require specific software or drivers, which are typically provided by Texas Instruments or third-party vendors. Ensure compatibility with your specific operating system or software before integrating the device into your system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VSP1900DBT Overview

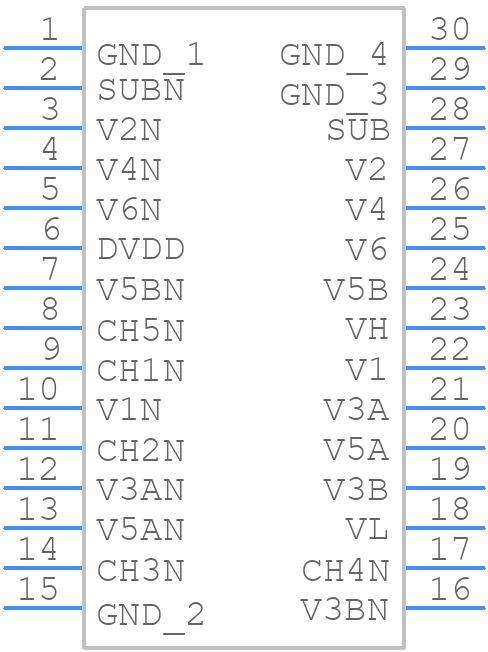

Use the download button to access the VSP1900DBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VSP19,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
