VT6K1T2CR footprint, schematic symbol and 3D model by ROHM Semiconductor

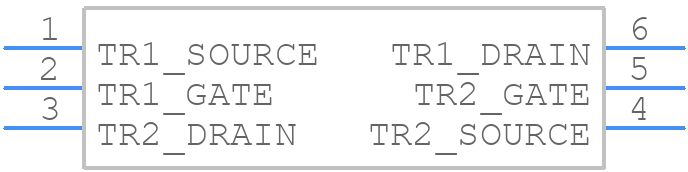

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VT6K1T2CR
Part Number VT6K1T2CR
Manufacturer ROHM Semiconductor
Pin Count 6
Part Category Transistor
Package Category SOT23 (6-Pin)
Footprint Name SOT23 (6-Pin) - VMT6
Released Date Feb 4, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

VT6K1T2CR Details

Manufacturer Part Number:
VT6K1T2CR
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
VMT6, 6 PIN
Pin Count:
6
ECCN Code:
EAR99
Factory Lead Time:
21 Weeks
Manufacturer:
ROHM Semiconductor
YTEOL:
0
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE AND RESISTOR
DS Breakdown Voltage-Min:
20 V
Drain Current-Max (ID):
0.1 A
Drain-source On Resistance-Max:
4.2 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
JESD-30 Code:
R-PDSO-F6
JESD-609 Code:
e1
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
6
Operating Mode:
ENHANCEMENT MODE
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
N-CHANNEL
Surface Mount:
YES
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON

VT6K1T2CR Frequently Asked Questions (FAQs)

A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
The device requires a stable input voltage (VIN) and a proper bias voltage (VB) to operate within the recommended operating conditions. Ensure VIN is within the specified range (4.5V to 5.5V) and VB is set to 2.5V ± 0.1V.
The maximum power dissipation (PD) is 1.5W. Ensure the device is operated within this limit to prevent overheating and damage.
Handle the device by the body or use an anti-static wrist strap to prevent ESD damage. Ensure the PCB is designed with ESD protection in mind, such as using ESD protection diodes or resistors.
Store the device in a dry, cool place with a temperature range of -40°C to 125°C and humidity below 60%.

Trust Checks

Community Provided

System Verified

Community Approved

VT6K1T2CR Overview

Use the download button to access the VT6K1T2CR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VT6K1, or try a keyword search, such as Small Signal Field-Effect Transistors
