ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
To ensure reliability, follow the recommended operating temperature range (up to 150°C), and consider derating the power dissipation according to the temperature. Also, ensure proper thermal design, and consider using a heat sink or thermal interface material to reduce thermal resistance.
The maximum allowed voltage on the gate of the VT6X11T2R is ±20V, but it's recommended to keep it within ±15V to ensure reliable operation and prevent damage to the device.
Yes, the VT6X11T2R is suitable for high-frequency switching applications up to 100 kHz. However, ensure that the PCB layout is optimized for high-frequency operation, and consider using a gate driver with a low output impedance to minimize switching losses.
Handle the VT6X11T2R with ESD-protective equipment, such as wrist straps or mats, and ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD-protection ICs, to prevent damage from static electricity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VT6X11T2R Overview

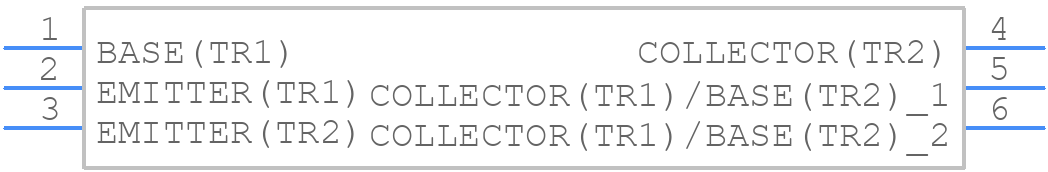

Use the download button to access the VT6X11T2R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VT6X1,
or try a keyword search, such as Small Signal Bipolar Transistors
