ROHM recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow ROHM's recommended derating guidelines, ensure proper heat sinking, and consider using a thermal interface material (TIM) to reduce thermal resistance.
While the datasheet specifies a maximum voltage rating, it's essential to note that voltage transients above 20V can still cause damage. ROHM recommends using a TVS diode or other protection circuitry to clamp voltage transients.
Yes, the VT6X12T2R is suitable for high-frequency switching applications. However, it's crucial to consider the device's switching characteristics, such as rise and fall times, and ensure that the PCB layout is optimized for high-frequency operation.
ROHM recommends a gate drive voltage of 10V to 15V for optimal performance. However, the specific voltage required may vary depending on the application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VT6X12T2R Overview

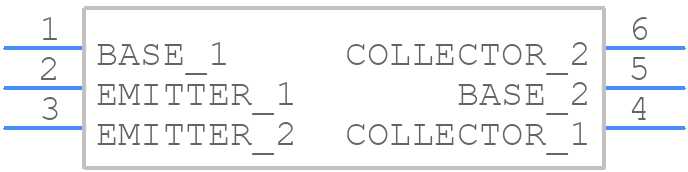

Use the download button to access the VT6X12T2R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VT6X1,
or try a keyword search, such as Small Signal Bipolar Transistors
