VT6X1T2R - ROHM Semiconductor

Description: ROHM VT6X1T2R Dual NPN Transistor, 200 mA, 20 V, 6-Pin VMT6

Download VT6X1T2R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

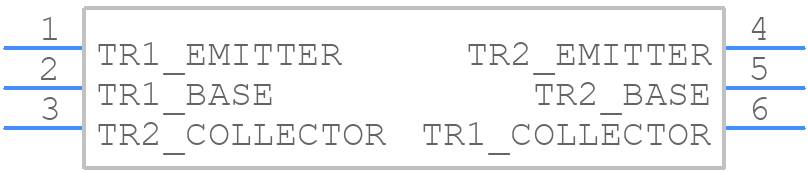

Symbol
VT6X1T2R - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
VT6X1T2R - ROHM Semiconductor PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - VMT6_2023
click to zoom
3D Models
VT6X1T2R - ROHM Semiconductor - 3D model - SO Transistor Flat Lead - VMT6_2023
click to zoom

VT6X1T2R Details

  • Manufacturer Part Number:

    VT6X1T2R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Collector Current-Max (IC):

    0.2 A

  • Collector-Emitter Voltage-Max:

    20 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    120

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    0.15 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    400 MHz

VT6X1T2R Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • ROHM recommends derating the power dissipation according to the temperature derating curve in the datasheet. Additionally, ensure good thermal design, and consider using a heat sink or thermal interface material if necessary.
  • Although the datasheet specifies the recommended operating voltage range, the absolute maximum rating for the input pins is typically 7V. Exceeding this voltage may cause damage to the device.
  • Yes, the VT6X1T2R can be used in switching regulator applications. However, ensure that the device is properly bypassed and decoupled to minimize noise and voltage spikes.
  • ROHM recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to prevent damage from electrostatic discharge.
