VZH220M1HTR-0606 - Lelon

Description: 22uF ±20% 50V Aluminum Electrolytic Capacitors 2000hrs@105℃

Download VZH220M1HTR-0606 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VZH220M1HTR-0606 - Lelon - PCB symbol
click to zoom

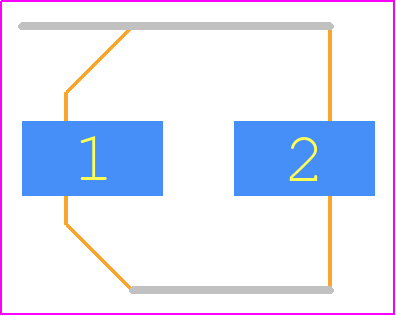

PCB Footprints
VZH220M1HTR-0606 - Lelon PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 6.3mm x 5.7mm_2025
click to zoom
3D Models
VZH220M1HTR-0606 - Lelon - 3D model - Capacitor Al Electrolytic - 6.3mm x 5.7mm_2025
click to zoom

VZH220M1HTR-0606 Details

  • Manufacturer Part Number:

    VZH220M1HTR-0606

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Lelon Electronics Corp

  • YTEOL:

    7

  • Capacitance:

    22 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    5.7 mm

  • Leakage Current:

    0.011 mA

  • Length:

    4.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    115.5 mA

  • Size Code:

    1717

  • Surface Mount:

    YES

  • Tan Delta:

    0.1

  • Terminal Shape:

    FLAT

  • Width:

    4.3 mm

VZH220M1HTR-0606 Frequently Asked Questions (FAQs)

  • The recommended land pattern for VZH220M1HTR-0606 can be found in the IPC-7351 standard or in the Lelon Electronics Corp application note. It typically consists of a rectangular pad with a size of 1.5mm x 0.8mm and a solder mask clearance of 0.1mm.
  • VZH220M1HTR-0606 is a moisture-sensitive device. It is recommended to store it in a dry environment with a relative humidity of less than 20% and a temperature of less than 20°C. Before reflow soldering, the device should be baked at 125°C for 24 hours to remove any moisture.
  • The maximum reflow temperature for VZH220M1HTR-0606 is 260°C. It is recommended to use a reflow profile with a peak temperature of 250°C to ensure reliable soldering and prevent damage to the device.
  • VZH220M1HTR-0606 is designed for general-purpose applications and may not be suitable for high-vibration environments. If you need to use it in a high-vibration environment, it is recommended to perform additional testing and validation to ensure the device's reliability and performance.
  • To troubleshoot issues with VZH220M1HTR-0606, start by checking the device's datasheet and application notes for proper usage and handling guidelines. Then, perform visual inspection and electrical testing to identify the root cause of the issue. If necessary, contact Lelon Electronics Corp's technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VZH220M1HTR-0606 Overview

Use the download button to access the VZH220M1HTR-0606 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VZH22, or try a keyword search, such as Aluminum Electrolytic Capacitors
