W29N01GVSIAA - Winbond

Description: IC FLASH 1GBIT PARALLEL 48TSOP

Download W29N01GVSIAA Model

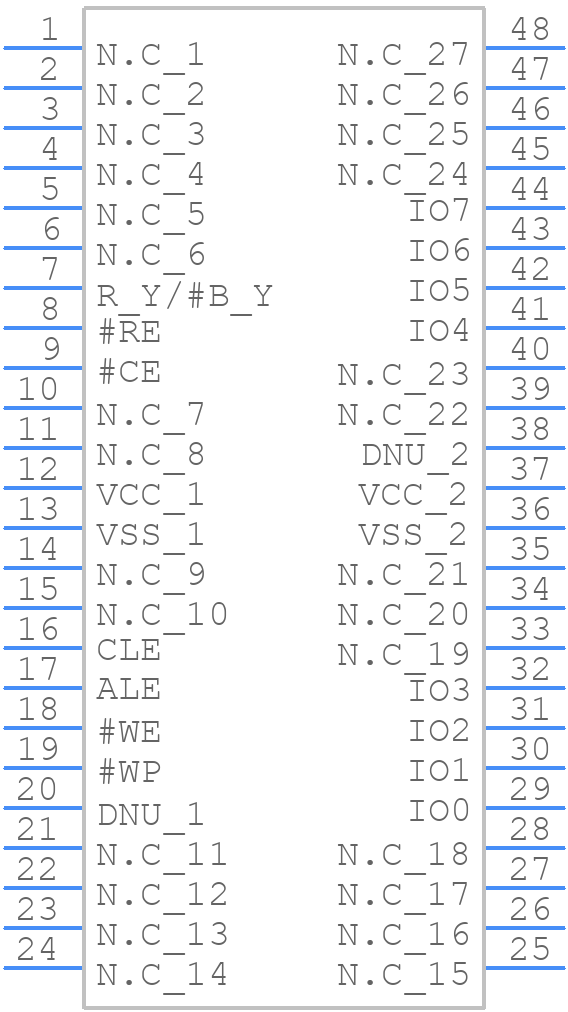

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W29N01GVSIAA - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - TSOP 48-pin 12x20
click to zoom
3D Models
W29N01GVSIAA - Winbond  - 3D model - Small Outline Packages - TSOP 48-pin 12x20
click to zoom

W29N01GVSIAA Details

  • Manufacturer Part Number:

    W29N01GVSIAA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSOP1-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Data Retention Time-Min:

    10

  • JESD-30 Code:

    R-PDSO-G48

  • Length:

    18.4 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    3.3 V

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Type:

    SLC NAND TYPE

  • Width:

    12 mm

  • Write Cycle Time-Max (tWC):

    0.025 ms

W29N01GVSIAA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the W29N01GVSIAA is -40°C to 85°C.
  • The hold signal (HOLD#) should be asserted low during a write operation to prevent any other device from accessing the flash memory.
  • The write protect (WP#) signal is used to prevent accidental writes to the flash memory. When WP# is low, the flash memory is write-protected.
  • The device density and organization can be determined by reading the device ID and configuration registers. The W29N01GVSIAA has a density of 1 Gbit and is organized as 128M x 8 bits.
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal.
